Product Introduction

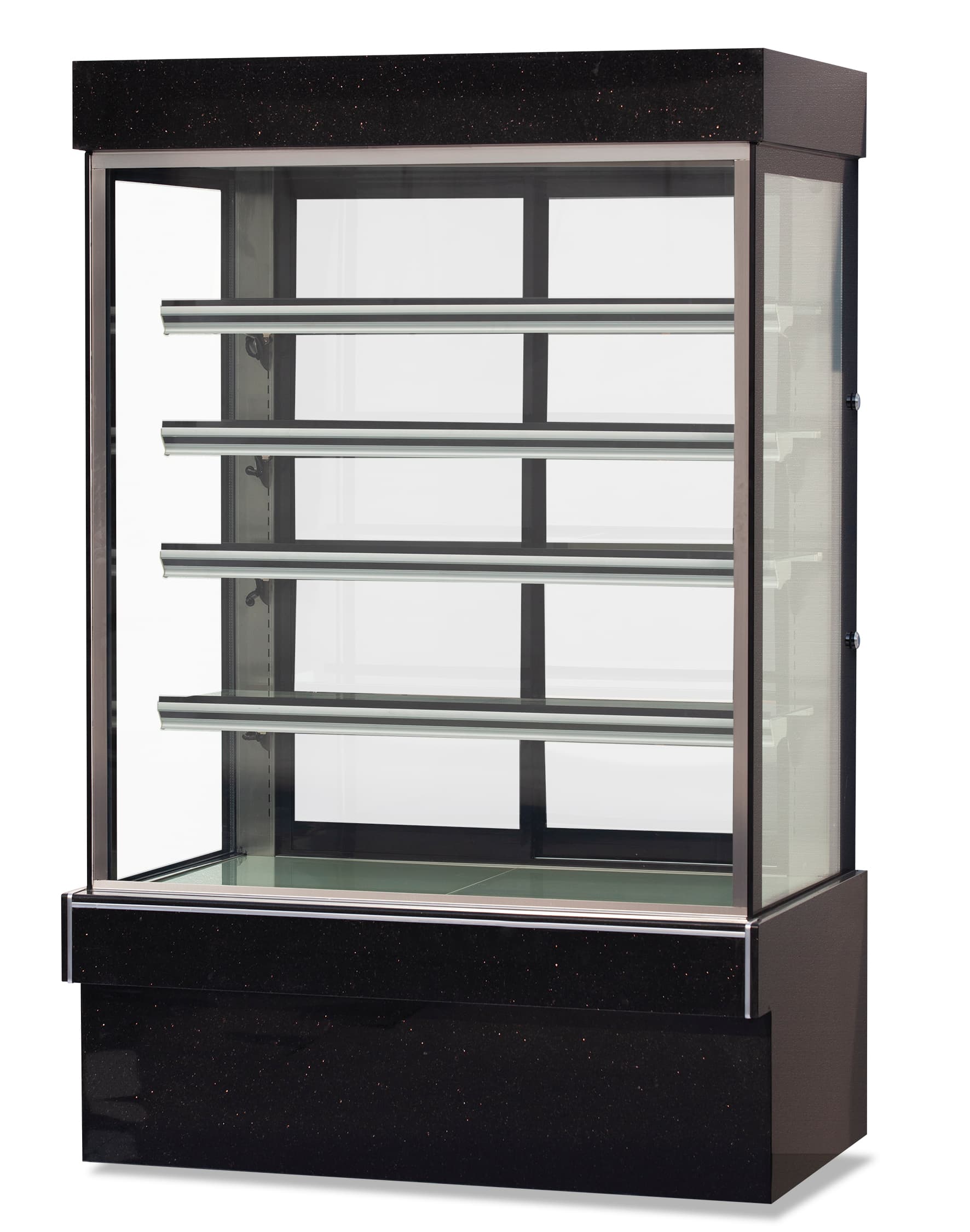

Display your cakes and delicate pastries in style while maximizing vertical merchandising space. The SCLG4-FH series 5-tier vertical rectangular cake display cabinets are engineered for high-volume bakeries, patisseries, cake shops, supermarkets, cafes and luxury hotels. Available in 1200mm, 1500mm, and 1800mm lengths with generous storage capacities ranging from 395L to 650L, these showcases present desserts beautifully behind crystal-clear tempered glass across 5 full tiers. Advanced fan cooling paired with high-efficiency Danfoss or Embraco compressors ensures uniform temperature distribution (+2 to +8°C) to keep every dessert fresh, delicate, and visual. Featuring bottom cooling, digital thermostat controls, smooth trundle wheels for effortless mobility, and sturdy plywood packaging, these units offer an unbeatable balance of capacity, performance, and elegance. Request a quote today.
Model Specifications
Specification |
SCLG4-800FH |
SCLG4-1080FH |
SCLG4-1500FH |
SCLG4-800FH1 (Front Door) |
Type |
5-Tier Vertical Showcase |
5-Tier Vertical Showcase |
5-Tier Vertical Showcase |
5-Tier Front Door Showcase |
Dimension (W×D×H) |
1200×730×1860mm |
1500×730×1860mm |
1800×730×1860mm |
1200×730×1860mm |
Capacity |
395L |
515L |
650L |
395L |
Temperature |
+2 ~ +8℃ |
+2 ~ +8℃ |
+2 ~ +8℃ |
+2 ~ +8℃ |
Cooling Type |
Fan Cooling |
Fan Cooling |
Fan Cooling |
Fan Cooling |
Thermostat |
Shangfang |
Shangfang |
Shangfang |
ECS |
Compressor |
Danfoss |
Danfoss |
Danfoss |
Embraco |
Power |
740W |
800W |
1000W |
740W |
Voltage |
220V/50Hz |
220V/50Hz |
220V/50Hz |
220V/50Hz |
Refrigerant |
R404a |
R404a |
R134a |
R134a |
Shelves |
Glass layer frame ×4 |
Glass layer frame ×4 |
Glass layer frame ×4 |
Aluminum alloy frame ×4 |
Cooling Position |
On the bottom |
On the bottom |
On the bottom |
On the bottom |
Bottom Support |
Trundle wheels |
Trundle wheels |
Trundle wheels |
Trundle wheels |
Packing Size |
1290×735×2000mm |
1590×735×2000mm |
1890×735×2000mm |
1290×735×2000mm |
Net / Gross Weight |
370kg / 430kg |
480kg / 545kg |
576kg / 646kg |
370kg / 430kg |
Product Features
 |
1. Premium Display Design
- 5-tier vertical showcase layout — maximizes display surface area within a compact floor footprint
- High-transparency tempered glass panels — provides 360° product visibility that highlights fine bakery details and attracts customer attention
- Multiple width options (1200mm, 1500mm, 1800mm) — tailored to accommodate diverse retail spaces and bakery store layouts
|
 |
2. Reliable Fan Cooling System
- Danfoss / Embraco heavy-duty compressors — delivering whisper-quiet, stable, and durable refrigeration
- Precision fan cooling mechanism — creates 3D forced air circulation for uniform temperature distribution (+2~+8℃) across all 5 tiers without cold spots
- Digital electronic thermostat (Shangfang / ECS) — accurate temperature monitoring and simple user controls
- Bottom-mounted compressor unit — optimizes heat dissipation, lowers center of gravity, and simplifies routine maintenance
|

|
3. Practical Details
- 4 heavy-duty layer frames — sturdy support for multi-layered cakes and delicate dessert trays
- Front-door opening options (SCLG4-800FH1) — ideal for self-service setups or front-counter customer access
- Heavy-duty trundle swivel wheels — facilitates easy relocation, positioning, and thorough under-cabinet floor cleaning
- Eco-friendly refrigerants (R134a / R404a) — food-safe, highly efficient, and compliant with environmental standards
- Plywood packing — safe for export shipping
|
 |
4. Certifications & Delivery
- CE / RoHS certified
- 15-30 days lead time
- Custom OEM/ODM options available
|
Applications
- Bakeries and patisseries — display fresh cakes and pastries
- Cake shops, dessert cafes and supermarkets
- Hotels, restaurants and buffet areas
Project Cases
- Installed in bakeries, cake shops and hotels worldwide
- Serving 80+ countries across Asia, Middle East, Africa and Latin America
Free layout & specification design for project customers
