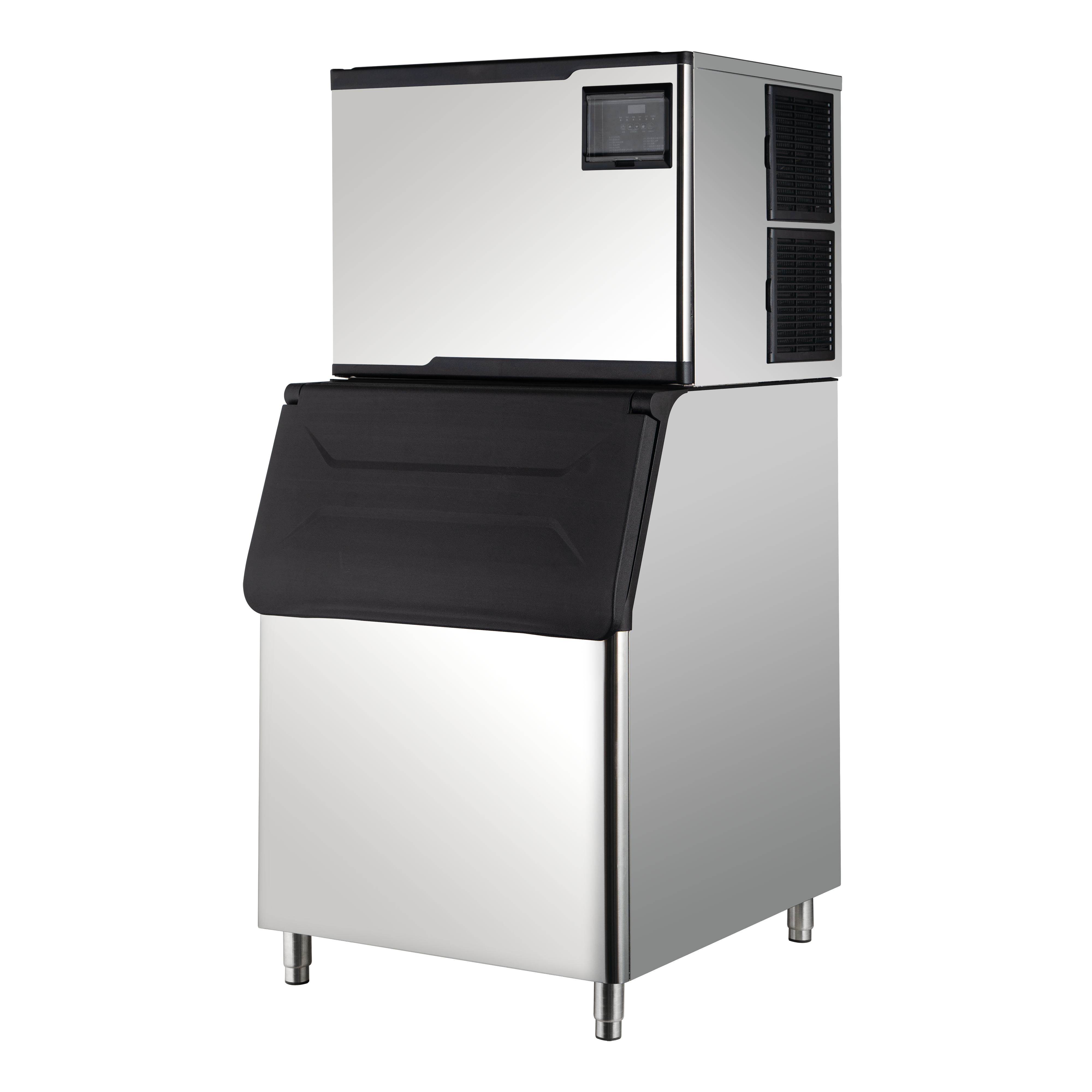

Crescent Ice Maker with Separate Bin (AM Split Series) — AM-400/AM-600/AM-800/AM-1000, 180-480kg/24h

Technical SpecificationsModelAM-400AM-600AM-800AM-1000Daily Output180kg/24h280kg/24h380kg/24h480kg/24hBin Capacity150kg150kg220kg220kgDimensions (W×D×H)560×830×1670mm560×830×1770mm760×830×1880mm760&time...
Get a Quote Explore Our Kitchen Projects
  • Introduction
  • More Products
Introduction

Technical Specifications

Model

AM-400

AM-600

AM-800

AM-1000

Daily Output

180kg/24h

280kg/24h

380kg/24h

480kg/24h

Bin Capacity

150kg

150kg

220kg

220kg

Dimensions (W×D×H)

560×830×1670mm

560×830×1770mm

760×830×1880mm

760×830×1880mm

Power

1000W

1000W

1800W

2200W

Voltage

220-240V~50/60Hz

220-240V~50/60Hz

220-240V~50/60Hz

220-240V~50/60Hz

Compressor

Embraco

Embraco

KK

KK

Refrigerant

R404a

R404a

R404a

R404a

Certification

CE/RoHS

CE/RoHS

CE/RoHS

CE/RoHS

Key Advantages

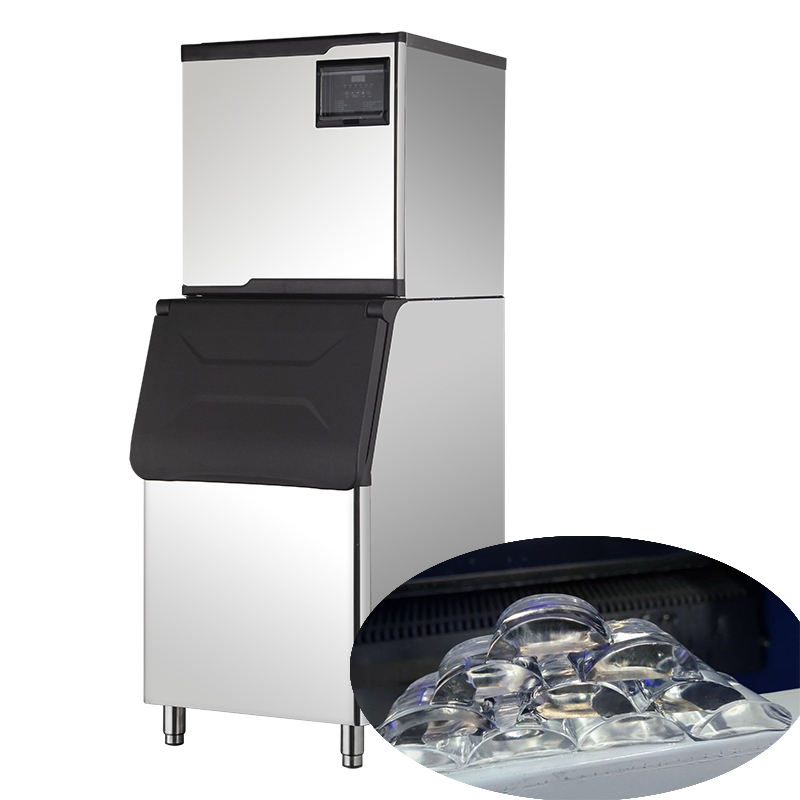

  • High output: 180-480kg per day — for high-volume bars, hotels and seafood markets
AM-400 (4).jpg

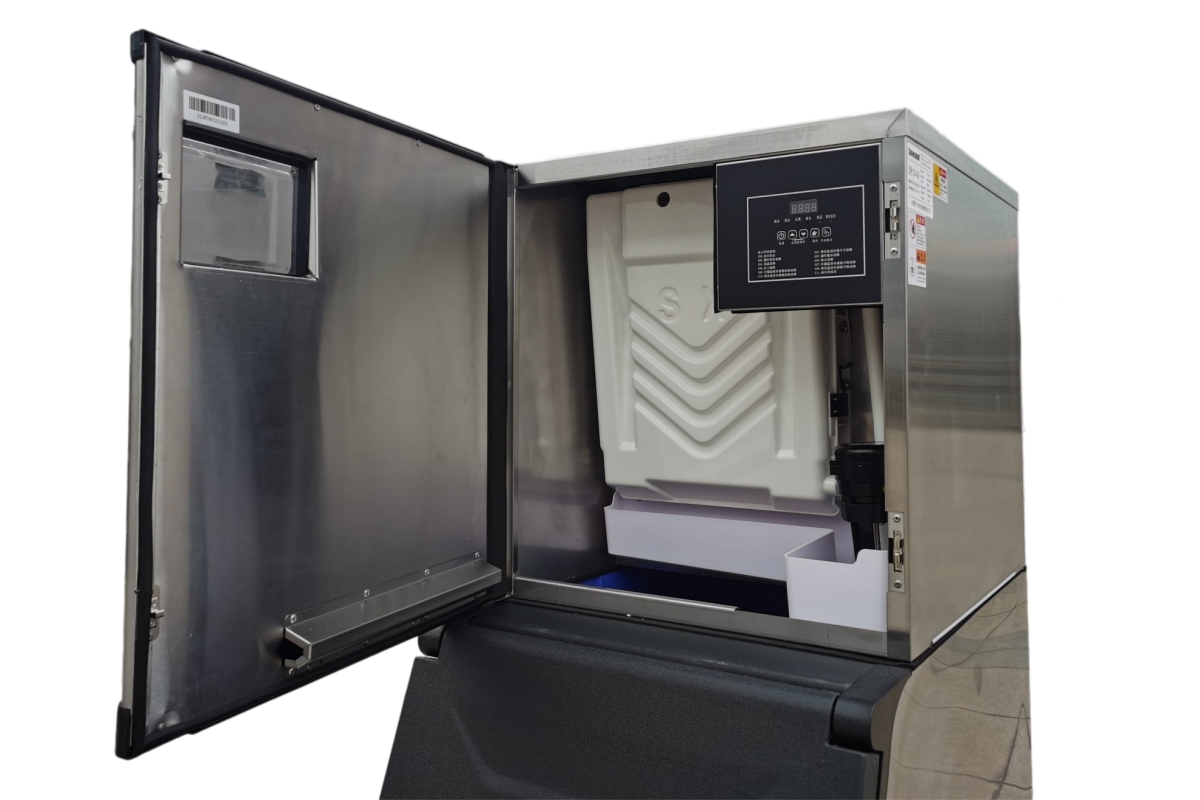

  • Large separate storage bin (150-220kg) — bulk ice always on hand
AM-400 (3).jpg
  • Embraco / KK compressors — industrial reliability for continuous duty
AM-400 (2).jpg
  • Crescent ice — quick-freezing, chewable, premium bar quality
AM-800 (2).jpg
  • Split modular design — easy service access and maintenance

Application

  • High-volume bars, clubs and entertainment venues
  • Hotels and resorts — banquet and bar ice supply
  • Seafood restaurants and markets — display and preservation ice
  • Supermarkets and catering operations — bulk ice demand

Service & Support

  • CE & RoHS certified — compliant with international food-safety standards
  • 15-30 days lead time; T/T, L/C, Credit Card & PayPal, Western Union accepted
  • Factory-direct with OEM/ODM customization available
  • 12-month warranty and after-sales technical support
  • Free layout & specification design for project customers

Project Cases

1 (5).jpg

FAQ

Q1: Are you a direct factory or a trading company?
A: We are a comprehensive commercial kitchen engineering contractor. We operate our own manufacturing facilities (specializing in custom stainless steel and heating equipment) AND serve as an authorized distributor for 40+ top international brands. This allows us to provide unbiased, optimized, and tailored equipment combinations for your project.
Q2: What is exactly included in your "A-Z Turnkey Solution"?
A: We handle everything from the ground up. You provide the floor plan, and we deliver a fully operational kitchen. Our services include:
l 2D/3D kitchen layout design & MEP consulting
l Custom manufacturing & equipment procurement
l Global logistics & online/onsite installation guidance
Q3: How do you guarantee the quality of international projects?
A: Quality is our baseline. Our self-manufactured equipment utilizes world-class components (e.g., German thermostats, imported IGBT modules). Furthermore, every single piece of equipment—whether built by us or sourced—undergoes a rigorous unified pre-shipment inspection by our engineering QA team before container loading.
Q4: What is the typical lead time for a complete kitchen project?
A: For a complete A-Z project, the production and consolidation timeline typically ranges from 4 to 6 weeks after the final layout and equipment list are approved. We provide strict project timelines to ensure your facility opens on schedule.
Q5: How do you handle warranty and after-sales service overseas?
A: We provide a 1-year warranty on core components. Understanding the distance, we proactively include a package of essential vulnerable spare parts with your initial shipment. Additionally, our technical support team offers 24/7 online troubleshooting and video guidance to ensure zero downtime.
