Product Introduction

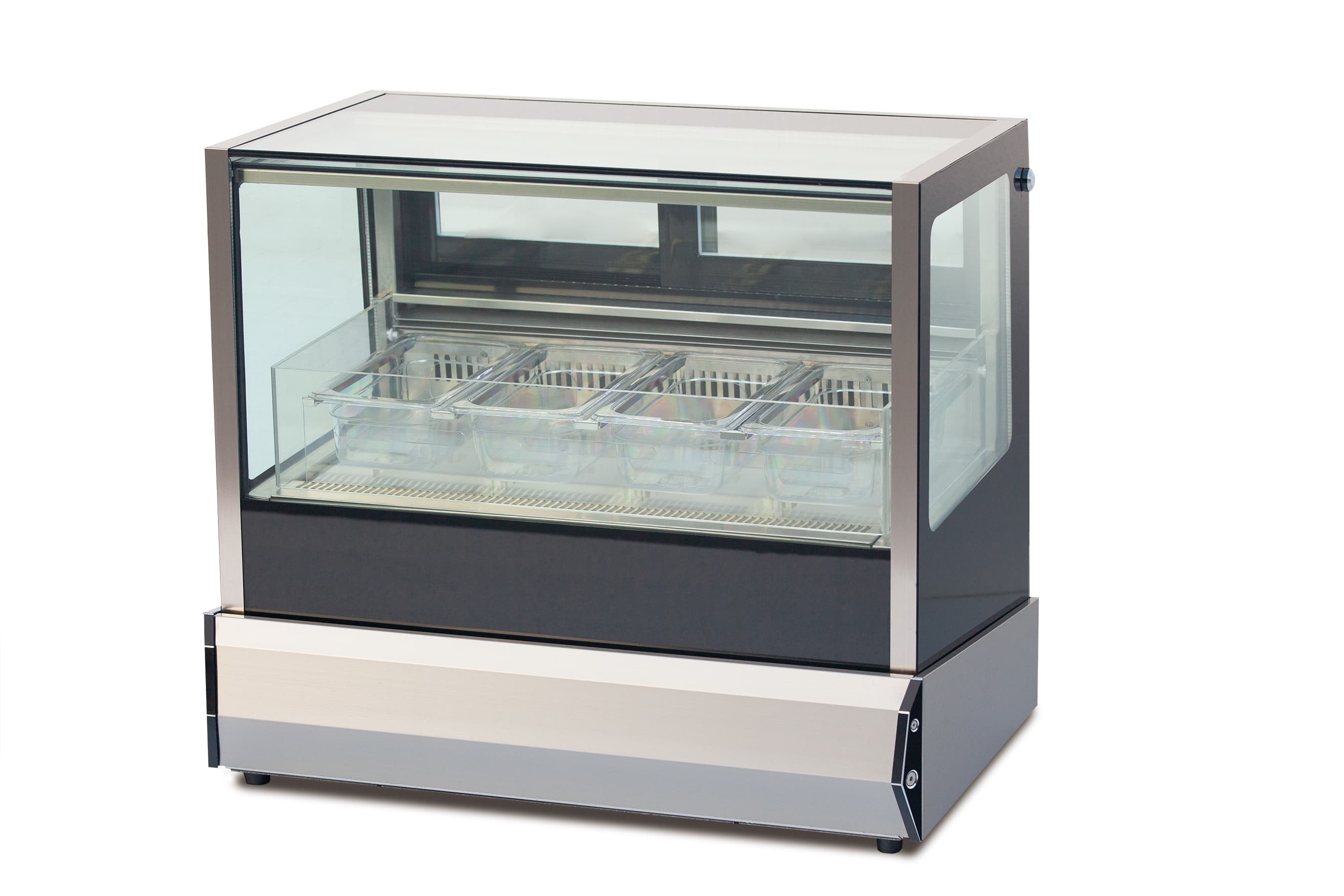

Display your artisanal ice cream and gelato in style while keeping them perfectly frozen and scoopable. The TEP series countertop rectangular ice cream showcases are specially designed for ice cream parlors, cafes, bakeries, restaurants, supermarkets and hotels. Available in two length options (900mm and 1250mm) and multiple configurations (TEP-4S, TEP-6S, TEP-4C, TEP-6C) with capacities from 15L to 31L, these compact tabletop showcases present ice cream beautifully behind clear glass while maintaining a consistent freezing temperature of -18°C to -22°C. Equipped with 1/3 GN pan compatibility, premium Shangfang thermostat, and a reliable Danfoss compressor, fan cooling ensures fast and even cold air distribution throughout the cabinet. Bottom cooling system, 30 fixed foot support, 220V/50Hz. Request a quote today.
Model Specifications
Specification |
TEP-4S |
TEP-6S |
TEP-4C |
TEP-6C |
Type |
Countertop Ice Cream Showcase |
Countertop Ice Cream Showcase |
Tabletop Ice Cream Showcase |
Tabletop Ice Cream Showcase |
Dimension (W×D×H) |
900×580×785mm |
1250×580×785mm |
900×545×785mm |
1250×545×785mm |
Suitable Pans |
1/3*4 GN Pan |
1/3*6 GN Pan |
1/3*4 GN Pan |
1/3*6 GN Pan |
Capacity |
15L |
31L |
24L |
31L |
Temperature |
-18 ~ -22℃ |
-18 ~ -22℃ |
-18 ~ -22℃ |
-18 ~ -22℃ |
Cooling Type |
Fan Cooling |
Fan Cooling |
Fan Cooling |
Fan Cooling |
Thermostat |
Shangfang |
Shangfang |
Shangfang |
Shangfang |
Compressor |
Danfoss |
Danfoss |
Danfoss |
Danfoss |
Power |
700W |
750W |
700W |
750W |
Voltage |
220V/50Hz |
220V/50Hz |
220V/50Hz |
220V/50Hz |
Refrigerant |
R404a |
R404a |
R404a |
R404a |
Cooling Position |
On the bottom |
On the bottom |
On the bottom |
On the bottom |
Bottom Support |
30 fixed foot |
30 fixed foot |
30 fixed foot |
30 fixed foot |
Packing |
Plywood |
Plywood |
Plywood |
Plywood |
Packing Size |
990×670×930mm |
1340×670×930mm |
990×580×900mm |
1340×580×900mm |
Net Weight |
128kg |
165kg |
128kg |
165kg |
Gross Weight |
155kg |
180kg |
155kg |
180kg |
Product Features
 |
1. Premium Display Design
- Space-saving tabletop design — ideal for ice cream shops, cafes, and front-counter placements
- Clear rectangular glass display — maximum product visibility to attract customer impulse purchases
-
GN Pan flexibility — compatible with 1/3*4 GN Pans (900mm) or 1/3*6 GN Pans (1250mm) for varied flavor arrangements
|
 |
2. Reliable Fan Cooling System
- Danfoss compressor — providing stable, energy-efficient freezing performance
- Shangfang digital thermostat — precise temperature control between -18~-22℃ to maintain perfect ice cream texture
-
Fan cooling system — dynamic airflow ensures fast freezing without hot spots or frosting issues
|

|
3. Practical Details
- Bottom-positioned cooling system — compact, space-efficient, and easy to maintain
- 30 fixed foot support — sturdy and steady placement on any tabletop or counter
- R404a eco-friendly refrigerant — stable performance for deep freezing conditions
-
Plywood packaging — safe protection for international export transport
|
 |
4. Certifications & Delivery
- CE / RoHS certified
- 15-30 days lead time
- Custom OEM/ODM options available
|
Applications
- Bakeries and patisseries — display fresh cakes and pastries
- Cake shops, dessert cafes and supermarkets
- Hotels, restaurants and buffet areas
Project Cases
- Installed in bakeries, cake shops and hotels worldwide
- Serving 80+ countries across Asia, Middle East, Africa and Latin America
Free layout & specification design for project customers
