Product Introduction

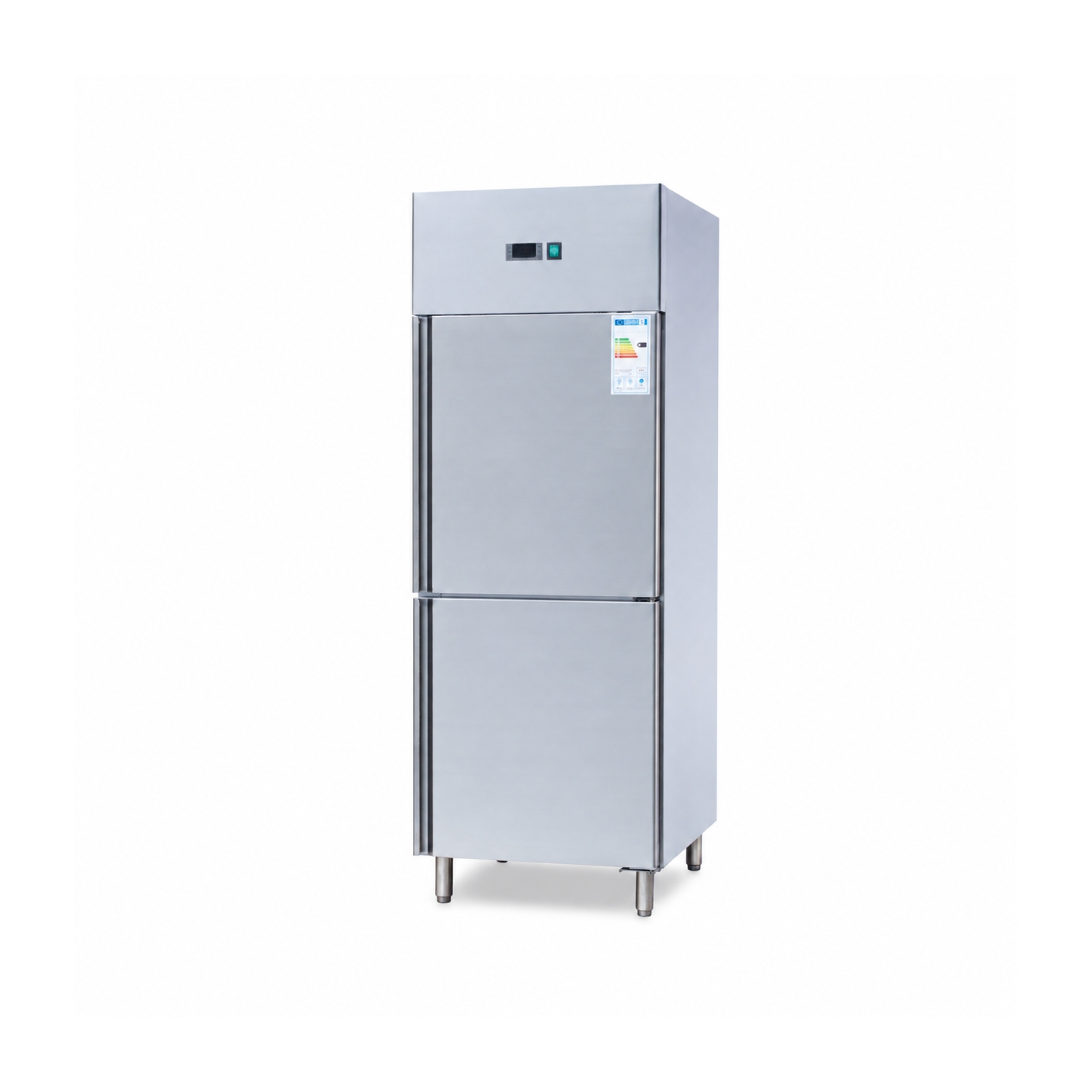

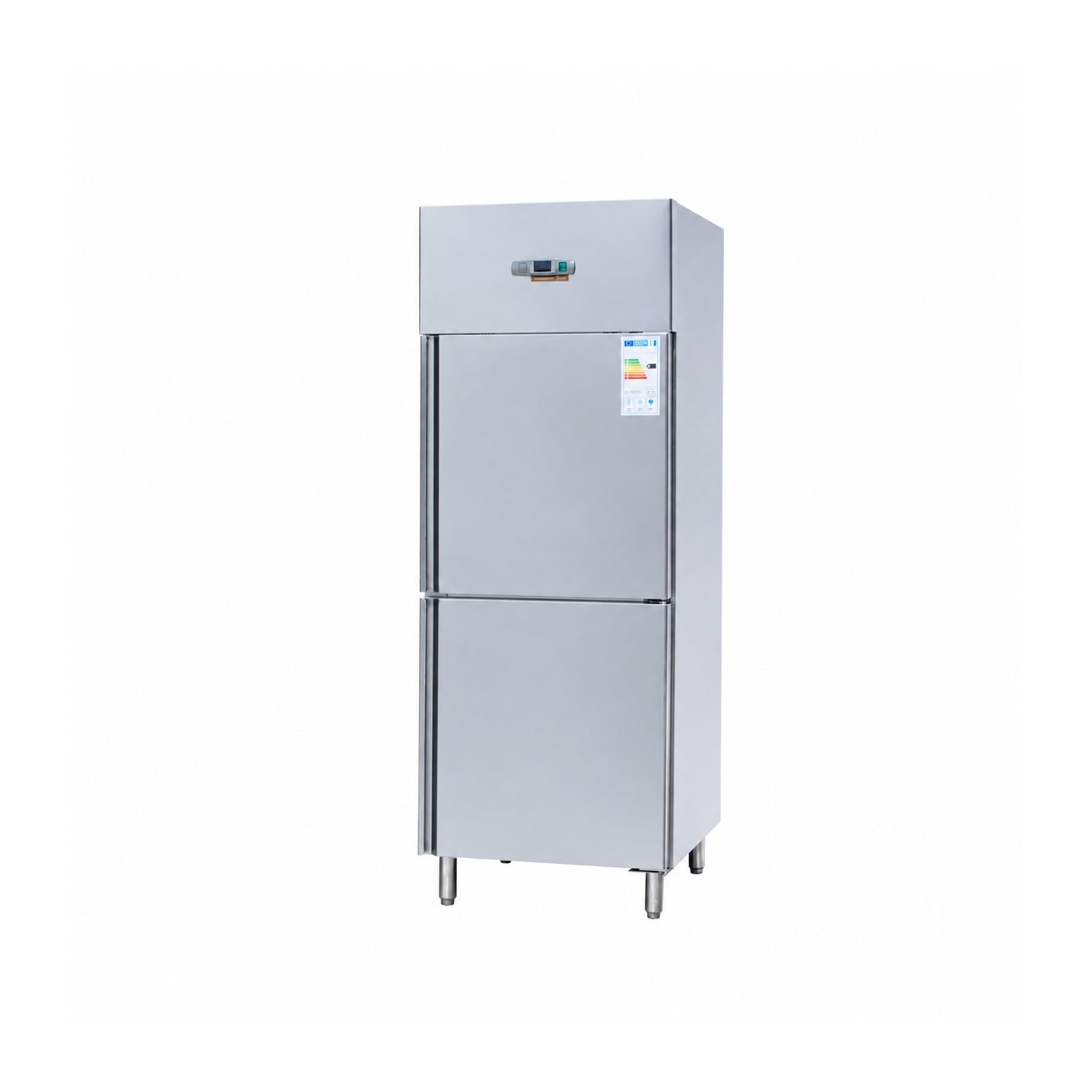

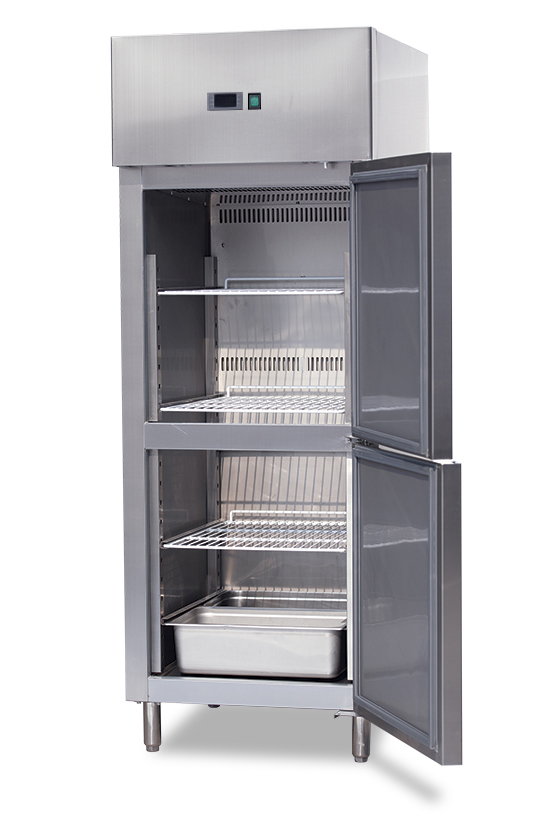

A perfect vertical cold-storage solution for kitchens where floor space is at a premium. The European Series single and divided double-door reach-in units deliver 550L of organized storage in a compact 740mm-wide footprint, in refrigerator (2-8°C) or deep-freezer (-18°C to -22°C) versions to match your needs. Imported compressors adapt to unstable power supplies worldwide, while 70mm high-density Cyclopentane insulation and a 38mm thermal break keep running costs low. Each GN-compatible shelf carries up to 30kg. CE-certified. Trusted by 500+ foodservice operators. Request a technical demo today.
Model Specifications
Specification |
GN650TN |
GN650BT |
GN650TNM |
GN650BTM |
Type |
Refrigerator |
Freezer |
Refrigerator |
Freezer |
Doors |
1 Door |
1 Door |
2 Divided Doors |
2 Divided Doors |
Dimensions (W×D×H) |
740×830×2010mm |
740×830×2010mm |
740×830×2010mm |
740×830×2010mm |
Packing Size |
770×860×2050mm |
770×860×2050mm |
770×860×2050mm |
770×860×2050mm |
Capacity |
550L |
550L |
550L |
550L |
Power |
400W |
400W |
400W |
400W |
Voltage / Frequency |
220-240V~50/60Hz |
220-240V~50/60Hz |
220-240V~50/60Hz |
220-240V~50/60Hz |
Compressor |
Embraco |
Danfoss |
Embraco |
Danfoss |
Refrigerant |
R134a |
R404a |
R134a |
R404a |
Temperature Range |
2°C ~ 8°C |
-18°C ~ -22°C |
2°C ~ 8°C |
-18°C ~ -22°C |
Cooling Type |
Fan Cooling |
Fan Cooling |
Fan Cooling |
Fan Cooling |
Thermostat |
Italian Dixell |
Italian Dixell |
Italian Dixell |
Italian Dixell |
Shelves |
3× GN-compatible, 30kg each |
3× GN-compatible, 30kg each |
3× GN-compatible, 30kg each |
3× GN-compatible, 30kg each |
Net Weight |
117kg |
117kg |
117kg |
117kg |
Gross Weight |
130kg |
130kg |
130kg |
130kg |
Material |
304/201 Stainless Steel |
304/201 Stainless Steel |
304/201 Stainless Steel |
304/201 Stainless Steel |
Feet / Castor |
Optional, 150mm |
Optional, 150mm |
Optional, 150mm |
Optional, 150mm |
Product Features
 |
1. Premium Materials & Seamless Craftsmanship
- Selected 304# / 201# brushed stainless steel, fully welded, polished and re-brushed to prevent water leakage and mold
- Flawless surface with no uneven reflections from 1 meter away
- Heavy-duty construction built for years of commercial service
|
 |
2. Efficient Cooling & Anti-Corrosion
- Imported compressor adapts to different global voltages — prevents damage from unstable power
- Threaded copper tubes maximize cooling, coated with anti-corrosion layer to resist strong acid and alkali
- Auto-defrost system — condensation evaporates automatically, no floor drain needed
- Precise air cooling with 0.5~1°C temperature variance; built-in evaporator frees up internal space
|
 |
3. Superior Insulation & Foaming
- High-density (42g/cm³) Cyclopentane foaming with 70mm thick insulation layer — locks in cold, saves energy
- Thermal break: 38mm PVC strip blocks heat transfer and reduces dust & residue buildup
|

|
4. Smart Details & Easy Maintenance
- Auto-return door: stays open at ≥90° for easy access and cleaning; closes automatically at <90° to save cold air
- Italian Dixell digital controller for precise temperature management
- Heavy-duty GN-compatible shelves, each holds up to 30kg; raised inner bottom edges prevent water entering the foam
- Tool-free magnetic door seals; removable plastic door frame makes replacing the heating wire easy
- Optional security locks to protect valuable ingredients
|
 |
5. Certifications & Delivery
- CE & RoHS certified
- 15-30 days lead time; T/T, L/C, Credit Card & PayPal, Western Union accepted
- Custom OEM/ODM options available
|
Project Cases
- Installed in 500+ kitchens across 80+ countries worldwide
- Hotel, restaurant, bar and catering projects — from 5-star hotels to quick-service chains
- Free layout & specification design for project customers
Q1: Are you a direct factory or a trading company?
A: We are a comprehensive commercial kitchen engineering contractor. We operate our own manufacturing facilities (specializing in custom stainless steel and heating equipment) AND serve as an authorized distributor for 40+ top international brands. This allows us to provide unbiased, optimized, and tailored equipment combinations for your project.
Q2: What is exactly included in your "A-Z Turnkey Solution"?
A: We handle everything from the ground up. You provide the floor plan, and we deliver a fully operational kitchen. Our services include:
l 2D/3D kitchen layout design & MEP consulting
l Custom manufacturing & equipment procurement
l Global logistics & online/onsite installation guidance
Q3: How do you guarantee the quality of international projects?
A: Quality is our baseline. Our self-manufactured equipment utilizes world-class components (e.g., German thermostats, imported IGBT modules). Furthermore, every single piece of equipment—whether built by us or sourced—undergoes a rigorous unified pre-shipment inspection by our engineering QA team before container loading.
Q4: What is the typical lead time for a complete kitchen project?
A: For a complete A-Z project, the production and consolidation timeline typically ranges from 4 to 6 weeks after the final layout and equipment list are approved. We provide strict project timelines to ensure your facility opens on schedule.
Q5: How do you handle warranty and after-sales service overseas?
A: We provide a 1-year warranty on core components. Understanding the distance, we proactively include a package of essential vulnerable spare parts with your initial shipment. Additionally, our technical support team offers 24/7 online troubleshooting and video guidance to ensure zero downtime.
