Walk-In Cooler Refrigerators

Walk-In Cooler Refrigerators deliver -40°C to 30°C precision temp control, 40% energy savings vs. legacy units, ISO 22000 & CE compliant. Trusted by 300+ food, pharma & chemical manufacturers. Request ROI Analysis Report.

Introduction
More Products

Introduction


Specification

Item	Description
Dimension	Customized
Temperature	-40°C to 30°C , can be customized
Panel Thickness	50mm/ 75mm/ 100mm/ 150mm

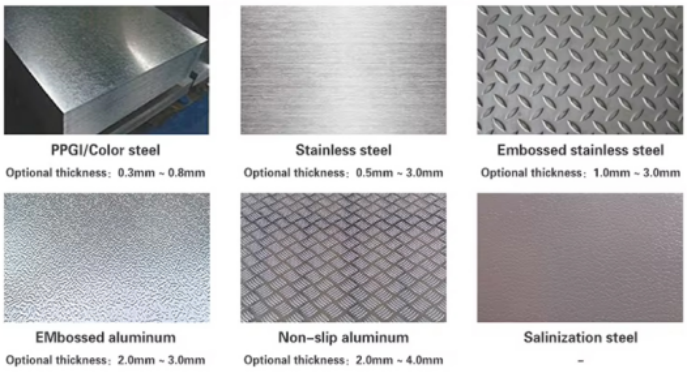

Steel Cover	Color steel plates and embossed aluminum plates
Type of Door	Hinge Door/ Sliding Door/ Swing Door
Refrigeration Type	Air/Water Cooled
Refrigeration	R22/ R404a/ R447a/ R507a
Voltage	220V/50Hz, 380V/50Hz or 440V/50Hz
Industry	Fruit/ Meat/ Vegetable/ Plants/ Flowers/ Chemical factory/ Medicine

Description:

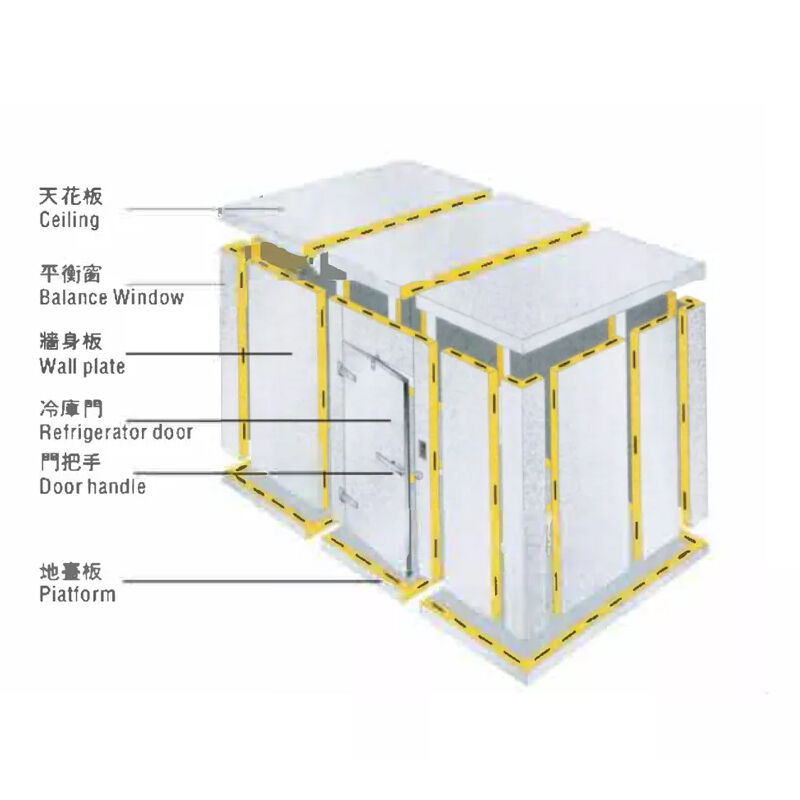

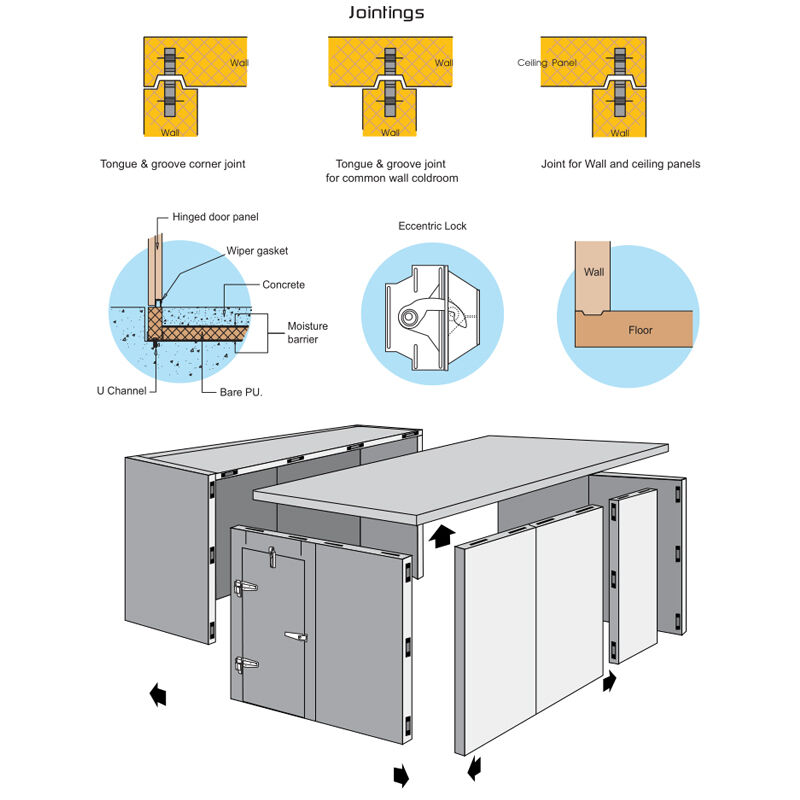

A combination cold storage was assembled with PU panels. Panels were connected by the type of eccentric locks with better air tightness, close and better insulation effect, are easily disassembled, can be flexibly mobile, etc. Such a kind of cold storage can be assembled to be a different size and capacity in a different place.

Applications：

No.	Temperature	Application
1	10°C-15°C	It can be used in processing workshop, temperature control hall, receiving and delivery area, function room, etc.
2	0°C-10°C	It can be used for meat pre-cooling, meat deacidification, fruit and vegetable preservation, low temperature passage, medicine storage, etc.
3	-15°C~-30°C	It can be used for low temperature storage, cold chain logistics, etc.
4	-30°C~-40°C	It can be used for food quick-freezing,tunnel freezer, etc.
5	-50°C~-80°C	It can be used for tuna storage, vaccine storage, etc.

Competitive Advantage:

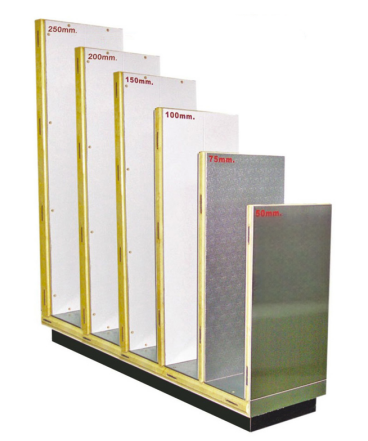

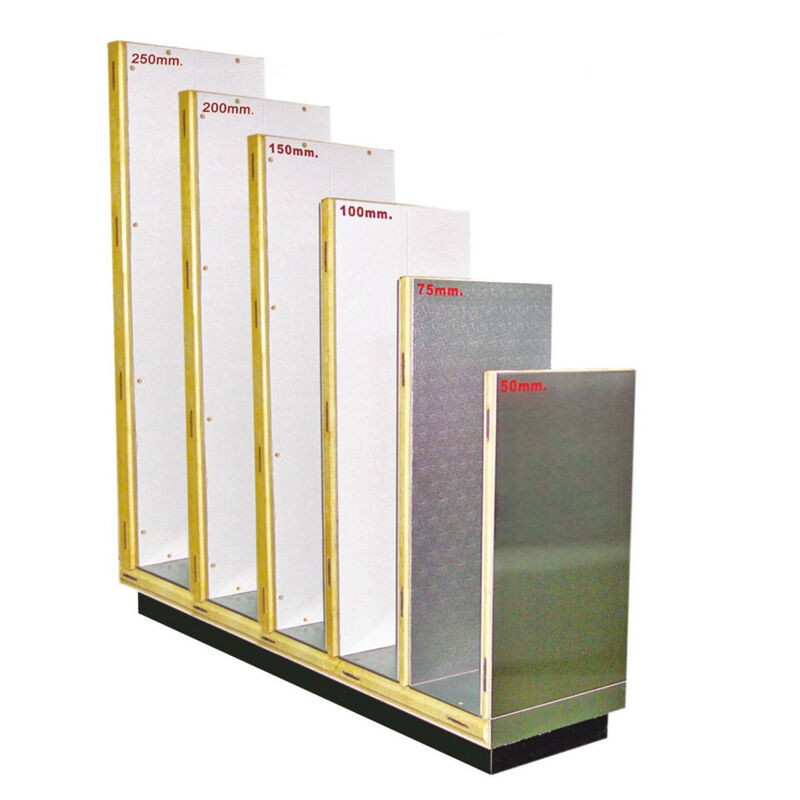

Cold Storage Plate Standard

No.	Pannel Thickness	Applicable Temperature Range
1	50mm	High temperature (5°C or above)
2	75mm	Medium temperature (-5°C or above)
3	100mm	Low temperature (-5°C or above)
4	150mm	Ultra Low temperature (-45°C or above)
