Product Introduction
Bakery storage is different — dough, cream and prepared products need dedicated space that fits your pan sizes. That's why the PA series undercounter refrigerators and freezers come with L-shape brackets that support standard 400×600mm baking pans directly, maximizing usable storage without wasted shelf space. Available in 2-door (360L) and 3-door (550L) configurations in both refrigerator (2-8°C) and freezer (-14°C to -18°C) versions. Deep 800mm cabinets, fan-assisted cooling, premium compressors and Italian Dixell control ensure consistent, reliable performance. CE-certified. Trusted by 500+ foodservice operators. Request a technical demo today.
Model Specifications
Specification |

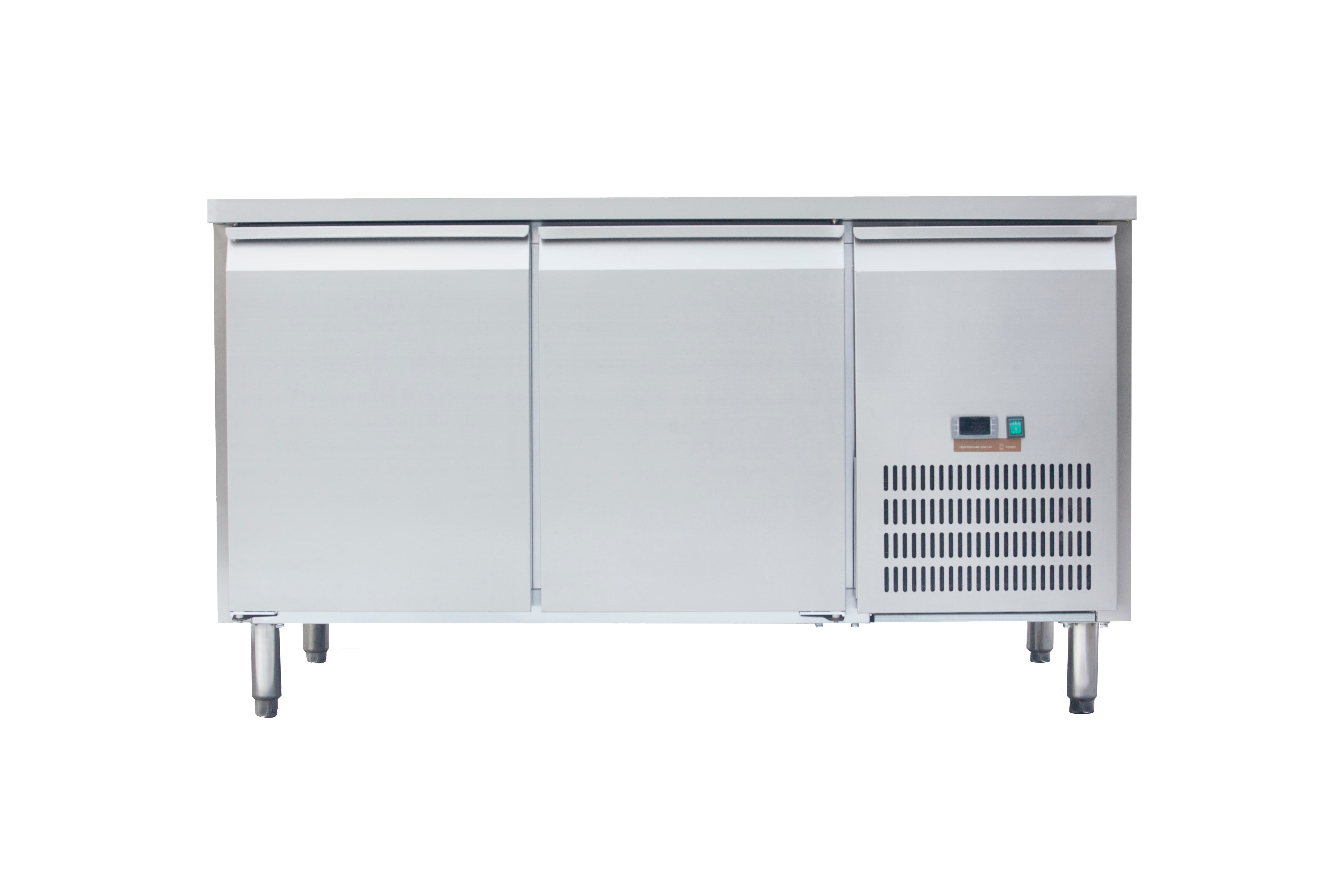

PA2100TN |
PA2100BT |

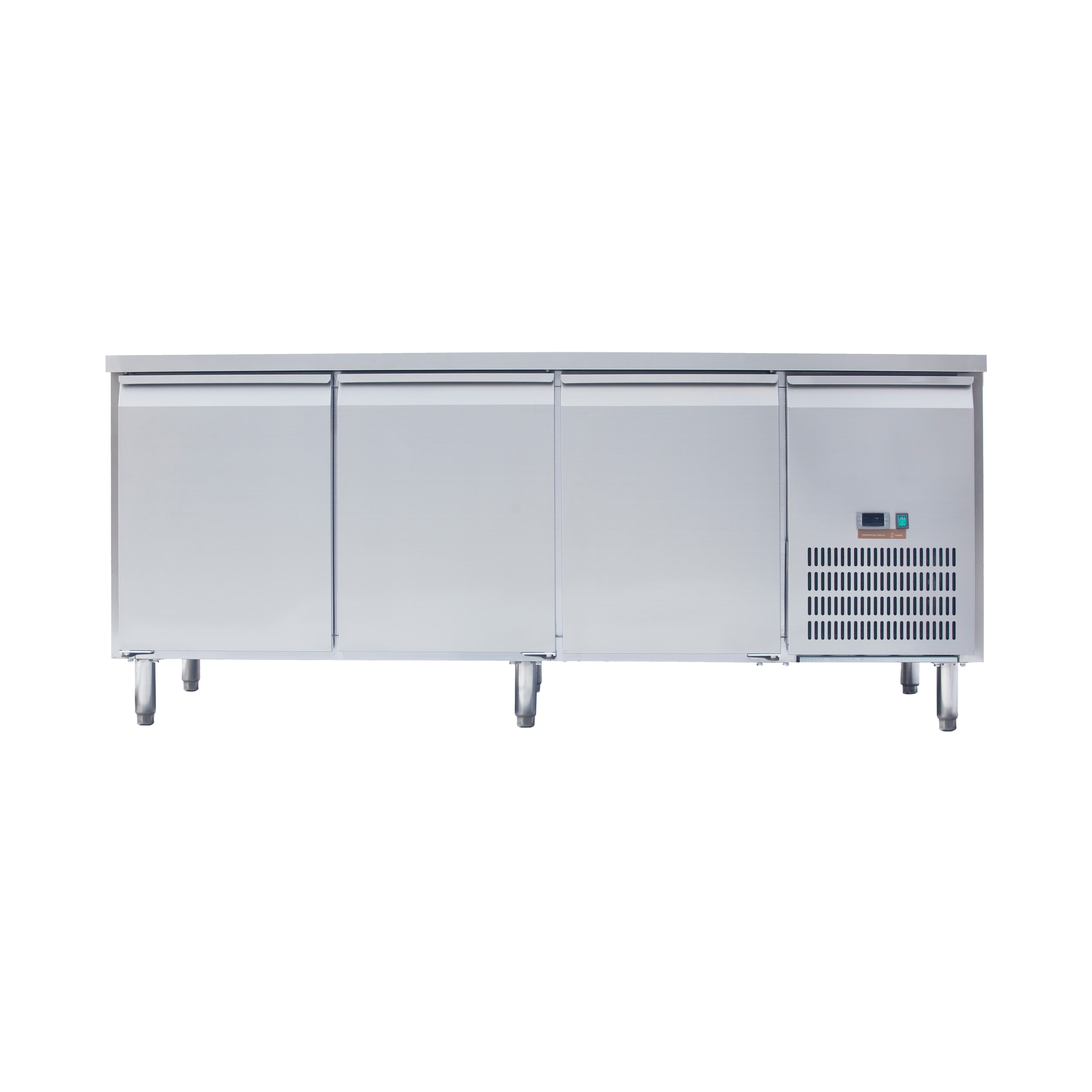

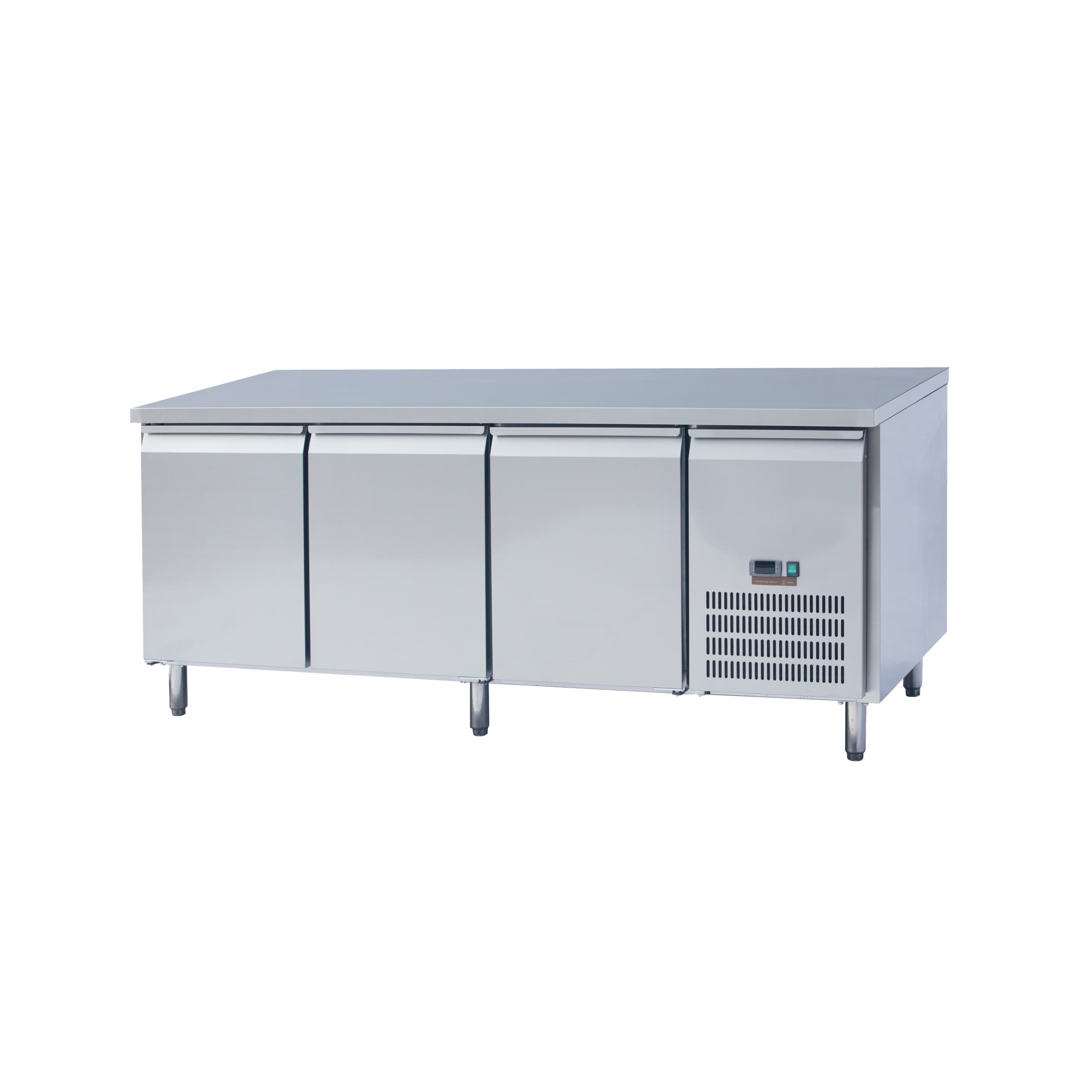

PA3100TN |
PA3100BT |
Type |
Refrigerator |
Freezer |
Refrigerator |
Freezer |
Doors |
2 Doors |
2 Doors |
3 Doors |
3 Doors |
Dimensions (W×D×H) |
1500×800×850mm |
1500×800×850mm |
2025×800×850mm |
2025×800×850mm |
Packing Size |
1570×840×910mm |
1570×840×910mm |
2085×840×910mm |
2085×840×910mm |
Capacity |
360L |
360L |
550L |
550L |
Power |
400W |
700W |
400W |
1000W |
Voltage / Frequency |
220-240V~50Hz |
220-240V~50Hz |
220-240V~50Hz |
220-240V~50Hz |
Compressor |
Embraco |
Danfoss |
Embraco |
Danfoss |
Refrigerant |
R134a |
R404a |
R134a |
R404a |
Temperature Range |
2°C ~ 8°C |
-14°C ~ -18°C |
2°C ~ 8°C |
-14°C ~ -18°C |
Cooling Type |
Fan Cooling |
Fan Cooling |
Fan Cooling |
Fan Cooling |
Thermostat |
Italian Dixell |
Italian Dixell |
Italian Dixell |
Italian Dixell |
Storage |
L-brackets for 400×600mm pans |
L-brackets for 400×600mm pans |
L-brackets for 400×600mm pans |
L-brackets for 400×600mm pans |
Net Weight |
115kg |
115kg |
141kg |
141kg |
Gross Weight |
121kg |
121kg |
161kg |
161kg |
Material |
304 Stainless Steel |
304 Stainless Steel |
304 Stainless Steel |
304 Stainless Steel |
Feet / Castor |
Optional, 150mm |
Optional, 150mm |
Optional, 150mm |
Optional, 150mm |
Product Features
 |
1. Premium Materials & Sanitary Construction
- Full 304 stainless steel construction — interior, exterior, worktop and handles, zero plastic components
- Seamless sanitary design: coved internal corners, raised-seam basin bottom, fully welded and re-brushed seams
-
Flawless surface flatness with flush-to-wall top for easy integration and on-site wiring
|
 |

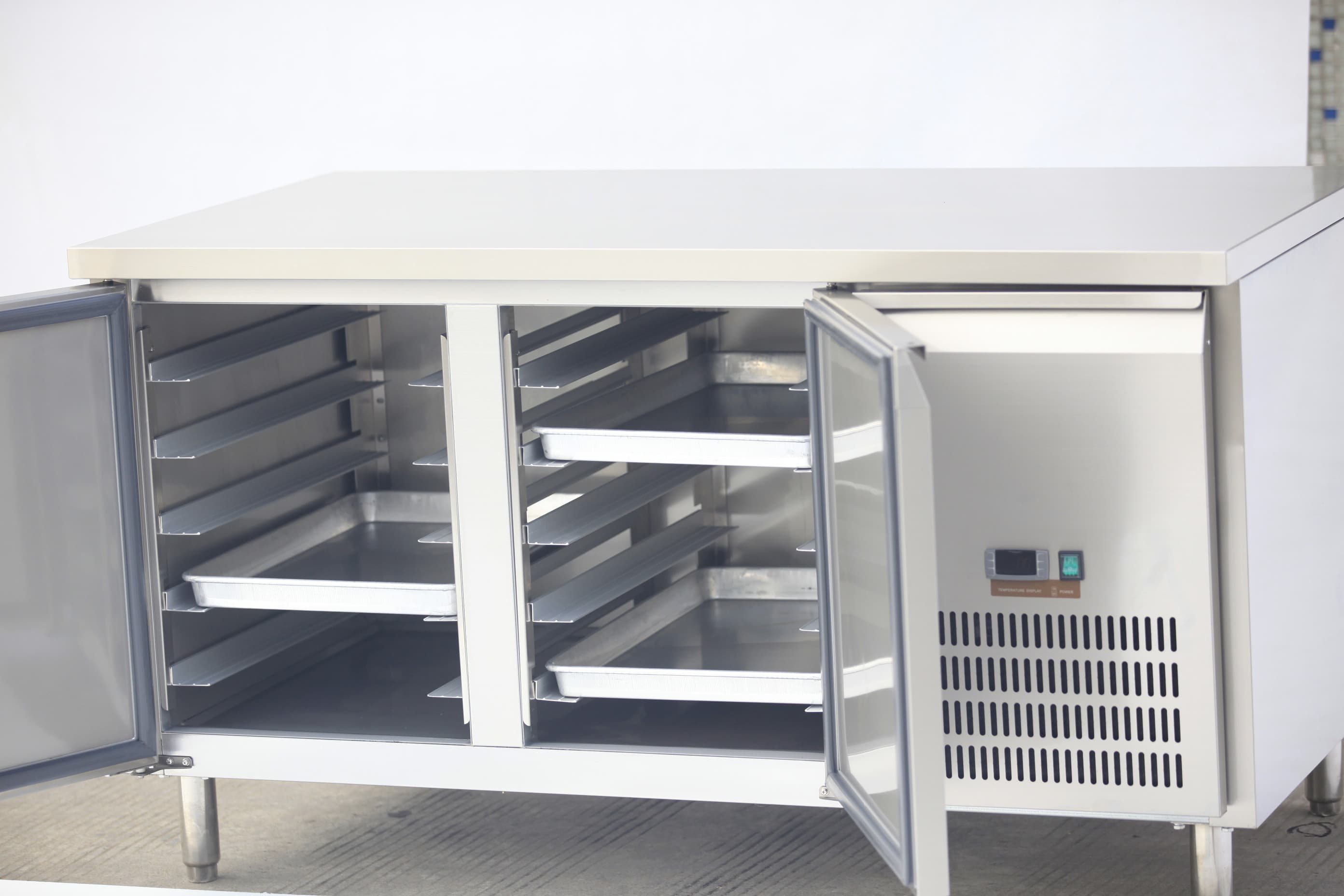

2. Baking-Pan Storage System
- L-shape brackets support standard 400×600mm baking pans directly
- No wasted shelf space — pans slide straight onto the brackets
-
Ideal for dough trays, cream pans and prepared bakery products
|
 |
3. Reliable Cooling System
- Slide-out modular refrigeration unit — plug-and-play, replace in minutes without on-site welding
- Premium compressors (Embraco / Danfoss) for stable, efficient performance
- Italian Dixell digital controller for precise temperature management
-
Dedicated air duct system ensures uniform temperature distribution, no hot spots
|
 |
4. Superior Insulation & Energy Efficiency
- High-density eco-friendly Cyclopentane foaming (42kg/m³, 50mm thick)
- Thermal break technology with 25mm PVC strips blocks cold transfer
- Self-closing doors with zinc-alloy hinges lock in cold and reduce compressor wear
|
 |
5. Convenient Accessories & Smart Details
- Auto-evaporation system — condensation drains automatically, no floor drain required
- Tool-free magnetic gaskets for effortless replacement
- Customizable backsplash: straight or R-angle corners
|
 |
6. Certifications & Delivery
CE & RoHS certified 15-30 days lead time; T/T, L/C, Credit Card & PayPal, Western Union accepted Custom OEM/ODM options available
|
Project Cases
- Installed in 500+ kitchens across 80+ countries worldwide
- Hotel, restaurant, bar and catering projects — from 5-star hotels to quick-service chains
- Free layout & specification design for project customers
