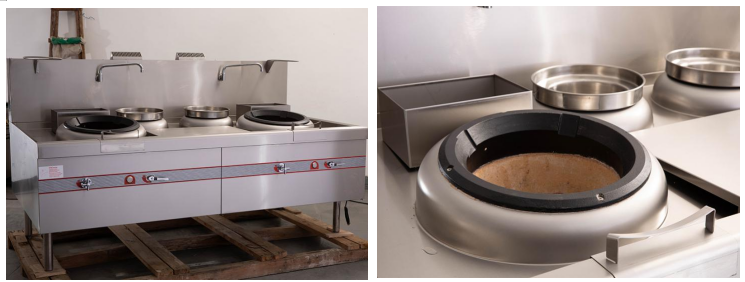

Wok Ranges

Product Specification

Additional Information:

Description:

Body Structure:

All 304 stainless steel body structure.

Wok Surface:

The surface is deep-drawn (stamped and stretched). It features a double-layer surface with 30mm cotton insulation.

Sealing:

The entire cooktop is sealed with ceramic glue to prevent leaks from damaging the internal cavity.

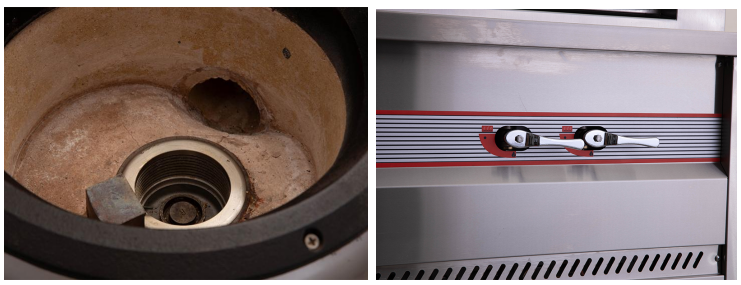

Burner:

Uses a stainless steel, environmentally friendly burner with pre-mixed combustion.

Control:

Each burner is independently equipped with a silent fan (220V/50Hz/130W) and a waterproof push-button switch. A knob controls the air flow and links to the main gas solenoid valve.

Safety:

Utilizes a combustion controller to step-by-step control the gas solenoid valve.

Standard:

Complies with the product execution standard.

Protection Level:

The external protection rating is IP24.

Main Components:

Burner, combustion controller, gas solenoid valve, and fan.

Applications：

High-speed, high-heat cooking operations in Chinese restaurants and other Asian cuisine establishments.

Commercial kitchens requiring intense, controllable heat for stir-frying and rapid cooking methods.

Competitive Advantage:

High Efficiency & Energy Saving:

The environmentally friendly pre-mixed combustion burner achieves high thermal efficiency and saves over 30% energy compared to traditional ordinary burners.

Powerful Firepower:

The gas and air are fully mixed for complete combustion, resulting in vigorous and powerful firepower.

Low Noise:

The burner operates with a low noise level, less than 65dB.

Safety Control:

The combustion controller provides staged control of the gas solenoid valve. If the flame fails to ignite, the fan is abnormal, the gas supply is abnormal, or an accidental flameout occurs, the gas is shut off within 1 second.
