Product Description
 |
|

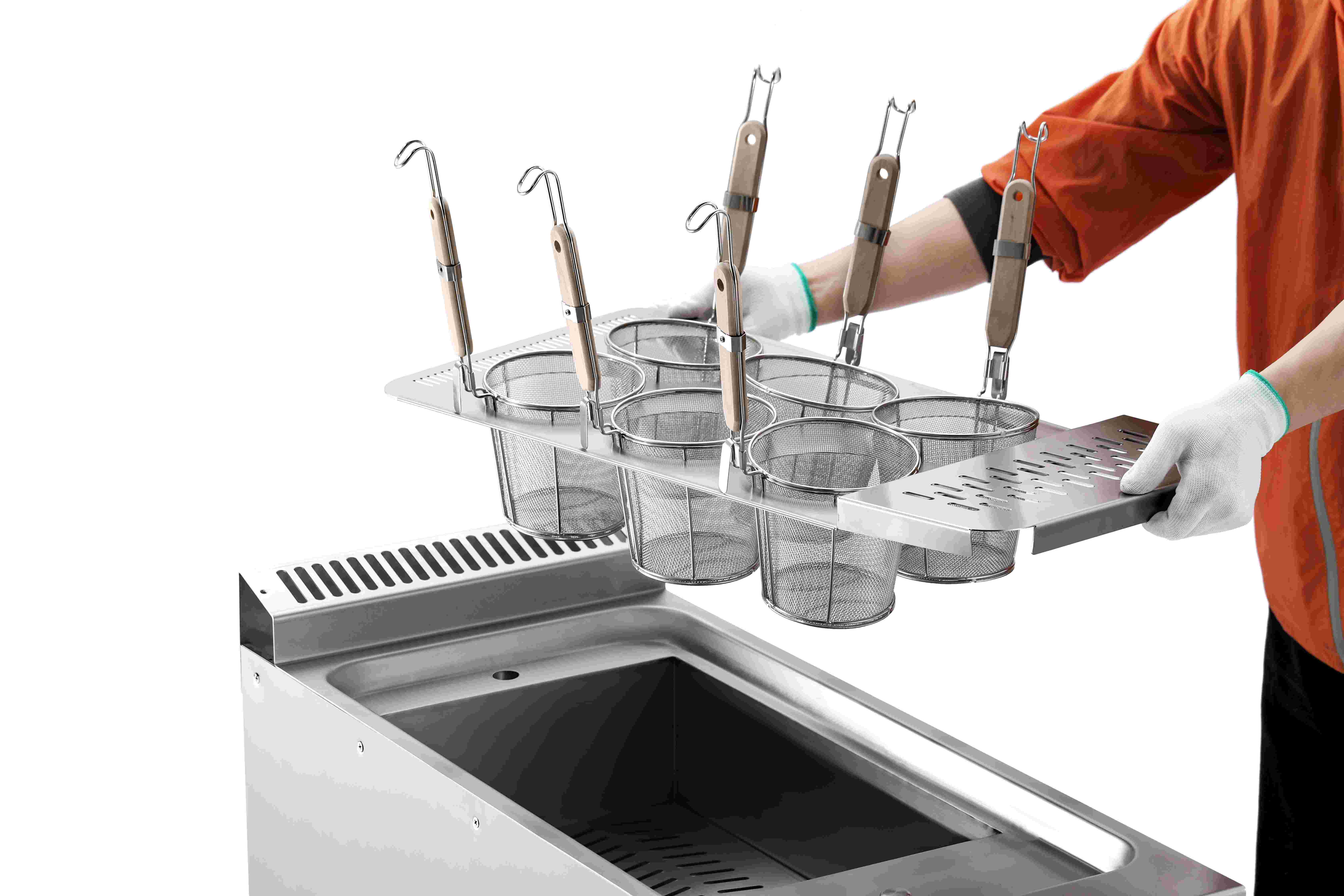

Intelligent Boiling & Triple-Power Heating
Maximizing output during peak service hours requires rapid thermal recovery. The unit utilizes high-efficiency heating elements featuring a three-gear power adjustment, ensuring rapid water boiling and optimal thermal compensation efficiency. Furthermore, the intelligent boiling system creates water bubbles that automatically disperse noodles to prevent sticking, ensuring perfect texture and consistency for every order.
|
 |
 |

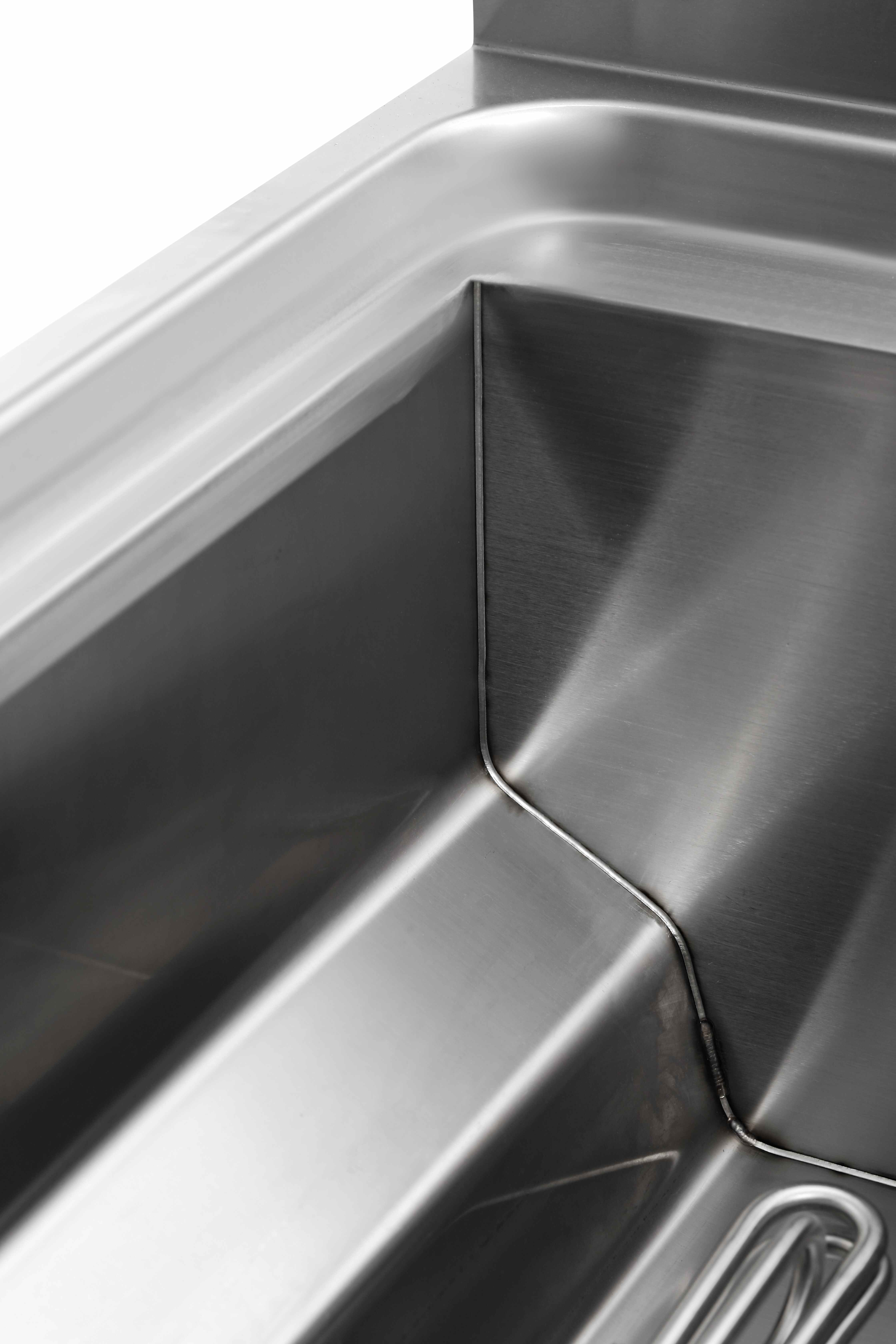

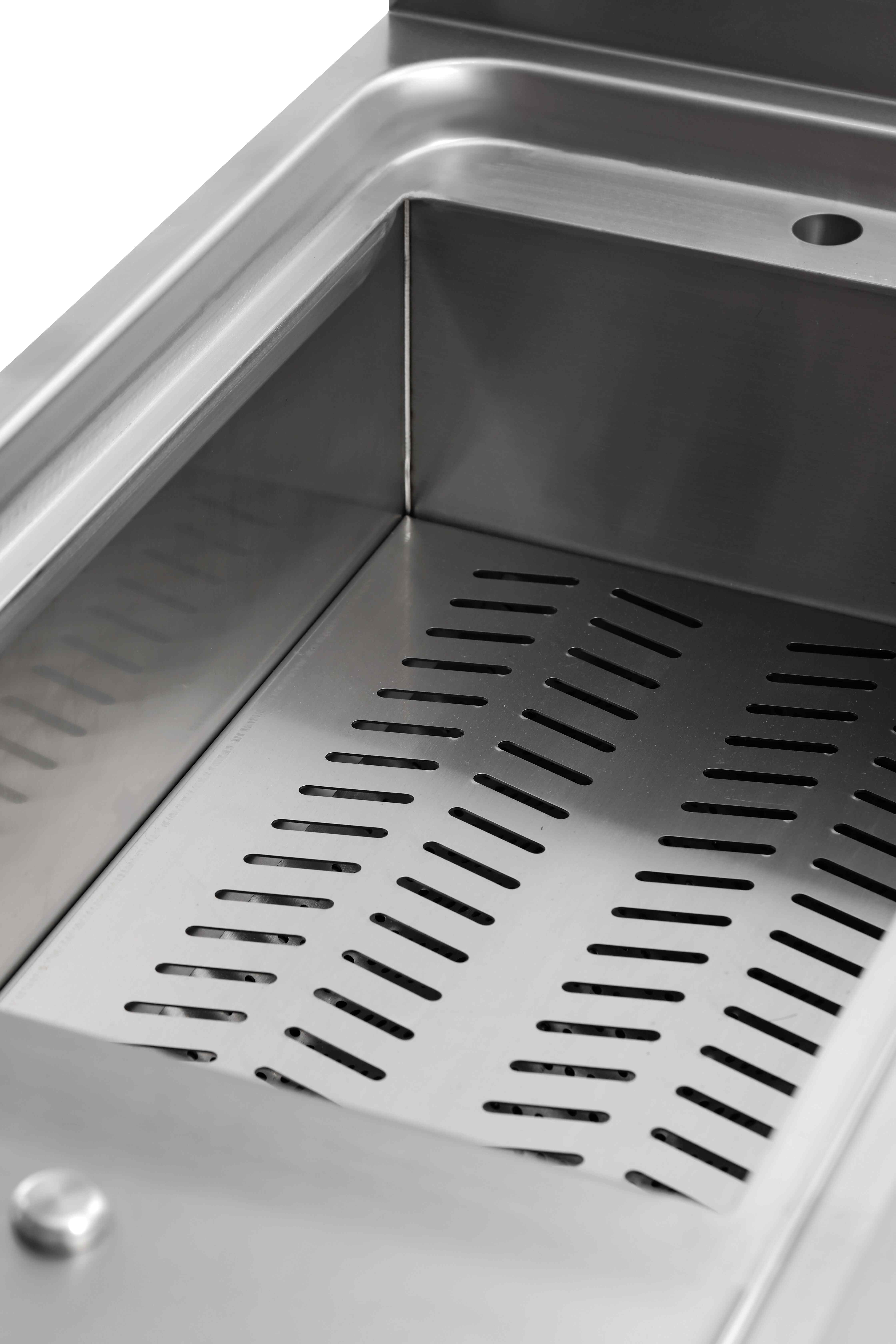

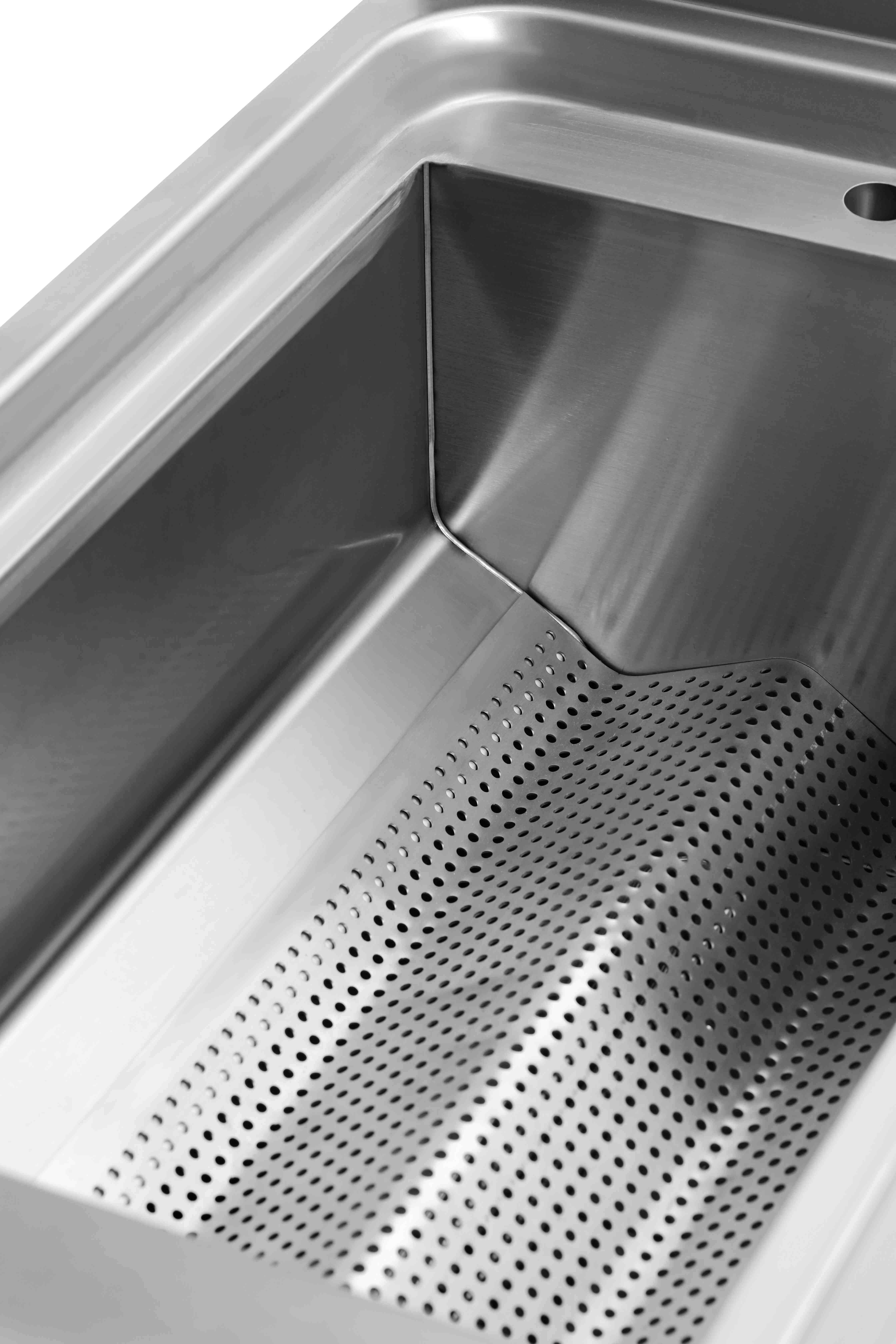

Streamlined High-Capacity Tanks & HACCP Hygiene
Designed for maximum efficiency and cleanliness, the boiler is equipped with 35L*2 large-capacity tanks featuring a streamlined, dead-corner-free design. This architecture perfectly balances high output and easy cleaning. To comply with strict HACCP hygiene standards, the sunken seamless fusion-welding process completely prevents leakage. Additionally, a built-in overflow channel design effectively prevents hot water from splashing and overflowing onto the workspace. |
 |

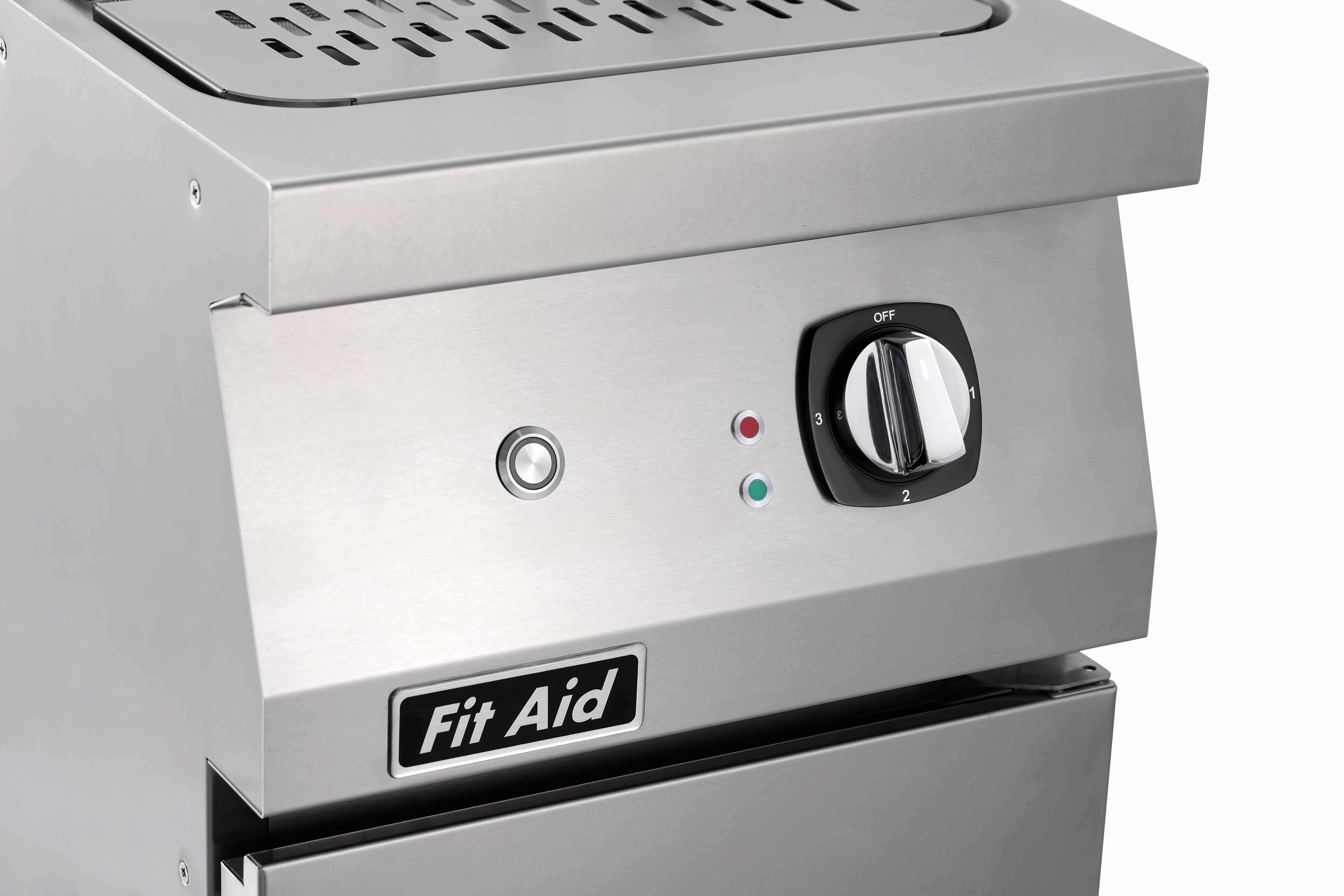

Smart Auto-Refill & Dry-Burn Protection
Operational safety is paramount in heavy-duty commercial kitchens. The noodle boiler is engineered with a one-touch auto-refill device combined with a precision water shortage sensor. This integrated safety mechanism completely eliminates the risk of dry burning, fully safeguarding operational safety and protecting the core heating components from damage. |
 |
Heavy-Duty Architecture & SUS304 Worktop
Built to withstand extreme commercial environments, the equipment is supported by a heavy-duty full-frame structure that provides high rigidity and fatigue resistance, ensuring lasting shape retention under extreme loads. The top surface features a 2.0mm (1.5mm) heavy-duty SUS304 worktop. Utilizing this food-grade material ensures the surface is highly anti-corrosion and alkali-resistant, extending the asset life with true engineering quality. |
| Series |
Model No. |
Dimensions (W*D*H) |
Voltage / Frequency |
Power |
Number of Noodle Baskets |
| 750 Series |
FIT2/ENC4/SPL |
400*750*850mm |
380V/50Hz |
6kW |
4 Pcs |
| 750 Series |
FIT2/ENC8/SPL |
800*750*850mm |
380V/50Hz |
6kW*2 |
6 Pcs |
| 900 Series |
FIT2/ENC4/SPD |
400*900*850mm |
380V/50Hz |
9kW |
8 Pcs |
| 900 Series |
FIT2/ENC8/SPD |
800*900*850mm |
380V/50Hz |
8kW*2 |
12 Pcs |
Engineering & Construction Features
| Category |
Specification Item |
Technical Details |
| Build & Material |
Base Architecture |
Heavy-duty full-frame structure. |
| Build & Material |
Worktop |
Heavy-duty thick SUS304 stainless steel worktop. |
| Build & Material |
Tank Design |
Streamlined, large-capacity tanks perfectly balance high culinary output with effortless cleaning. |
| Core Technology |
Smart Boiling |
Automatic boiling bubbles disperse noodles to prevent sticking, while the built-in overflow channel effectively prevents water splashing. |
| Core Technology |
Heating System |
High-efficiency heating elements with three-gear power adjustment ensure rapid boiling and exceptional thermal recovery. |
| Safety System |
Water Management |
One-touch auto-refill device paired with a water shortage sensor completely eliminates dry-burning risks, safeguarding operational safety. |

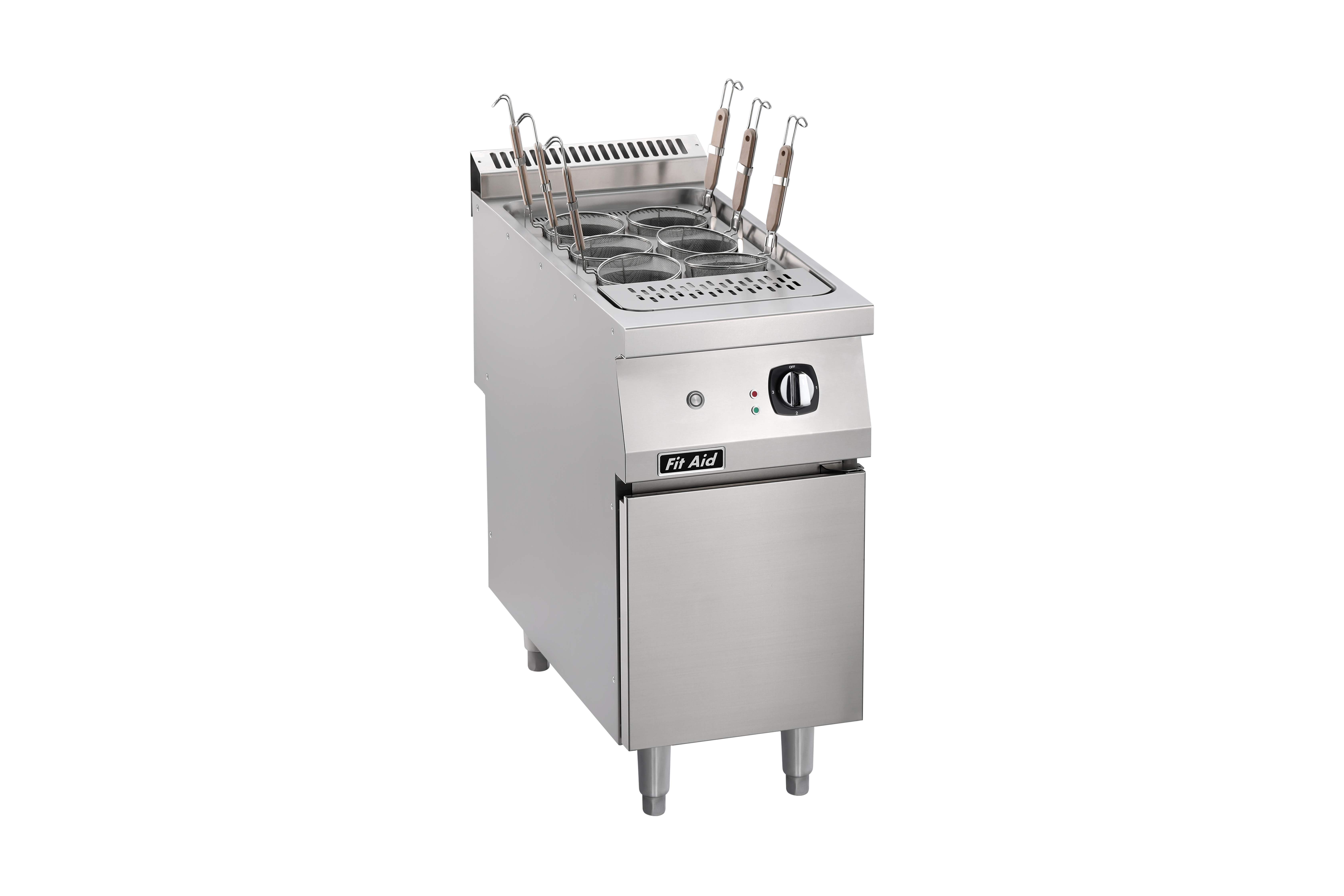

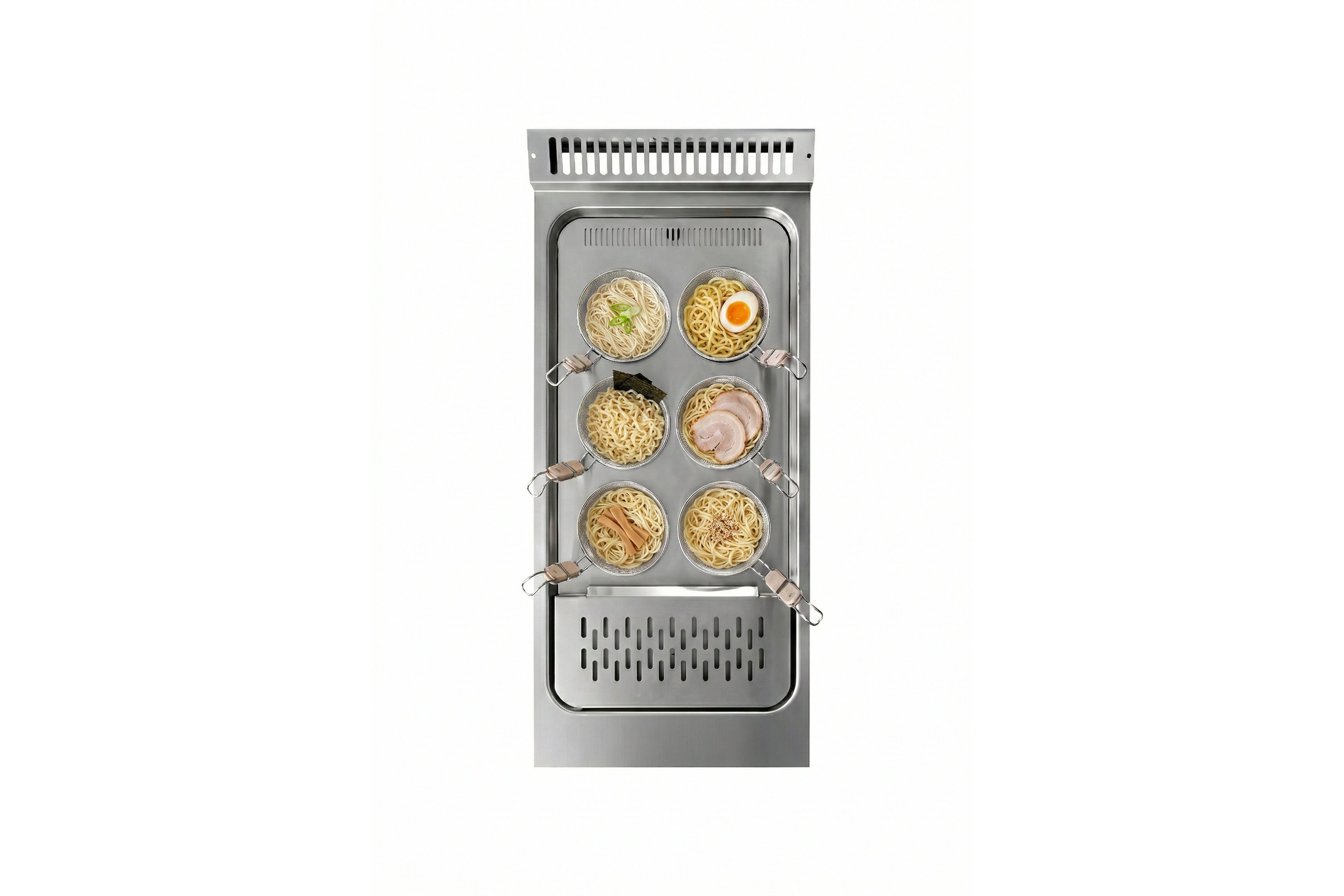

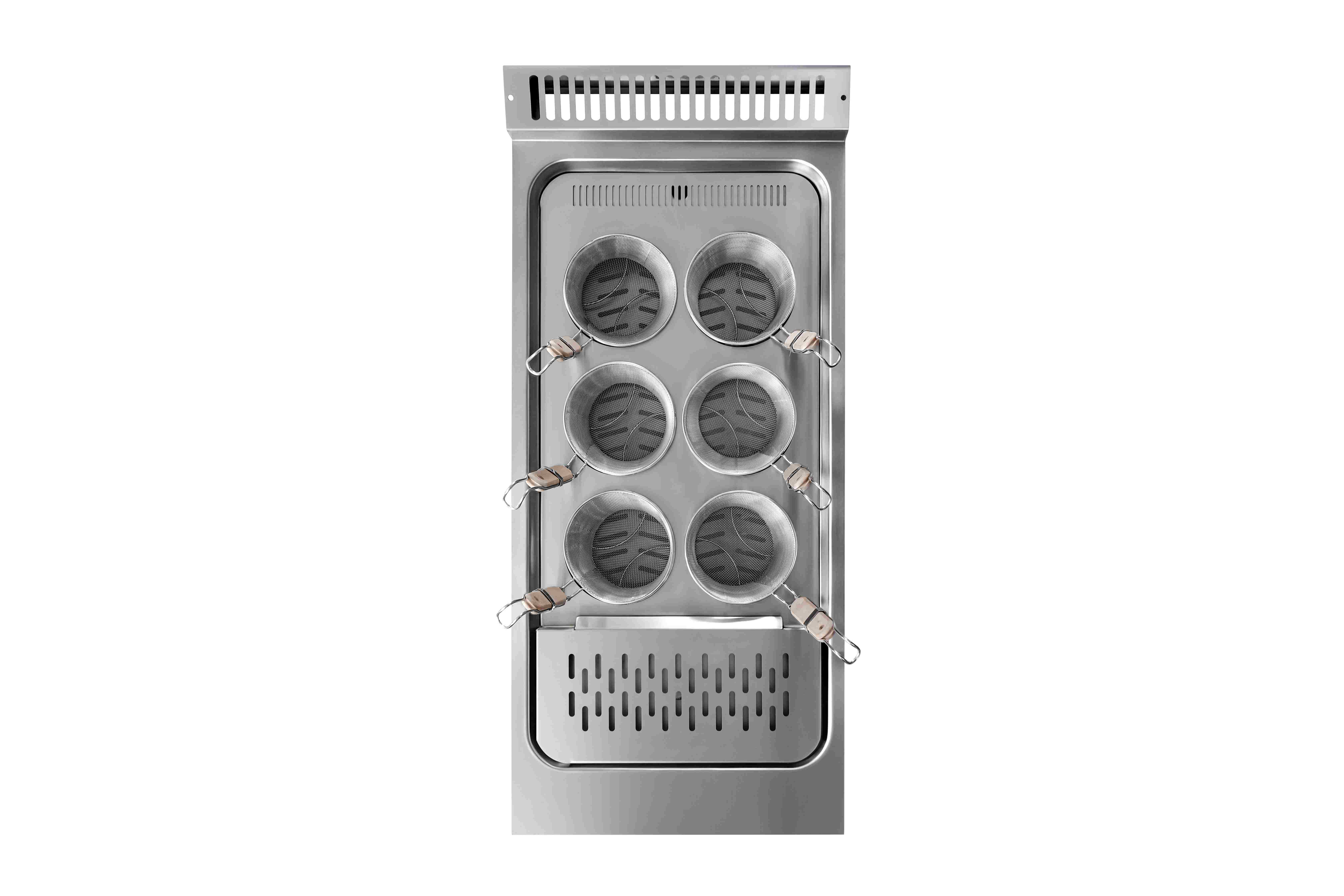

Engineered for High-End Culinary Spaces
The 750/900 Series is the system of choice for uncompromising culinary environments.
✓ Luxury Hotel Back-of-House
✓ Fine Dining & Michelin-Star Kitchens
✓ High-Volume Quick Service Lounges
✓ Open Kitchen Concept Designs
