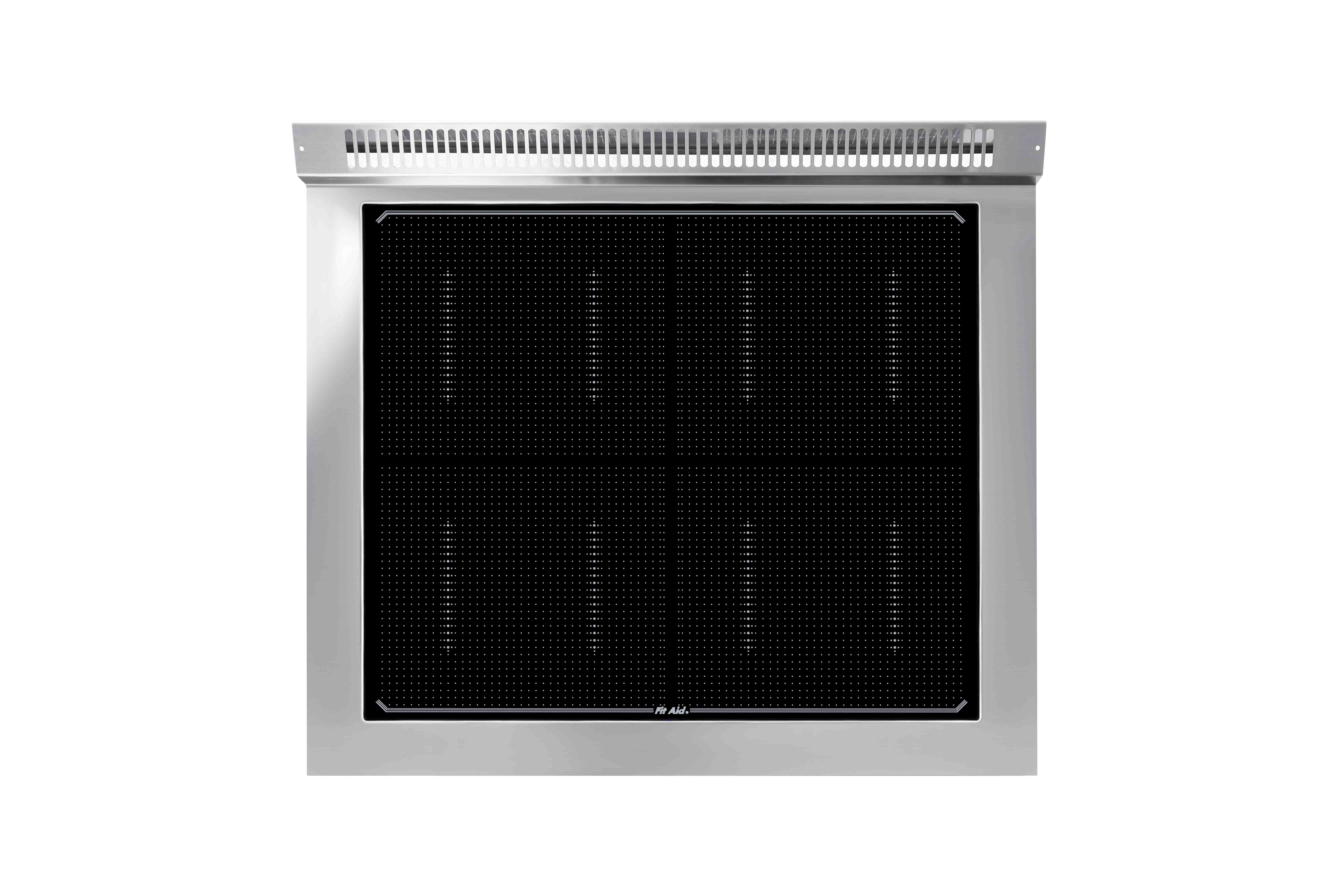

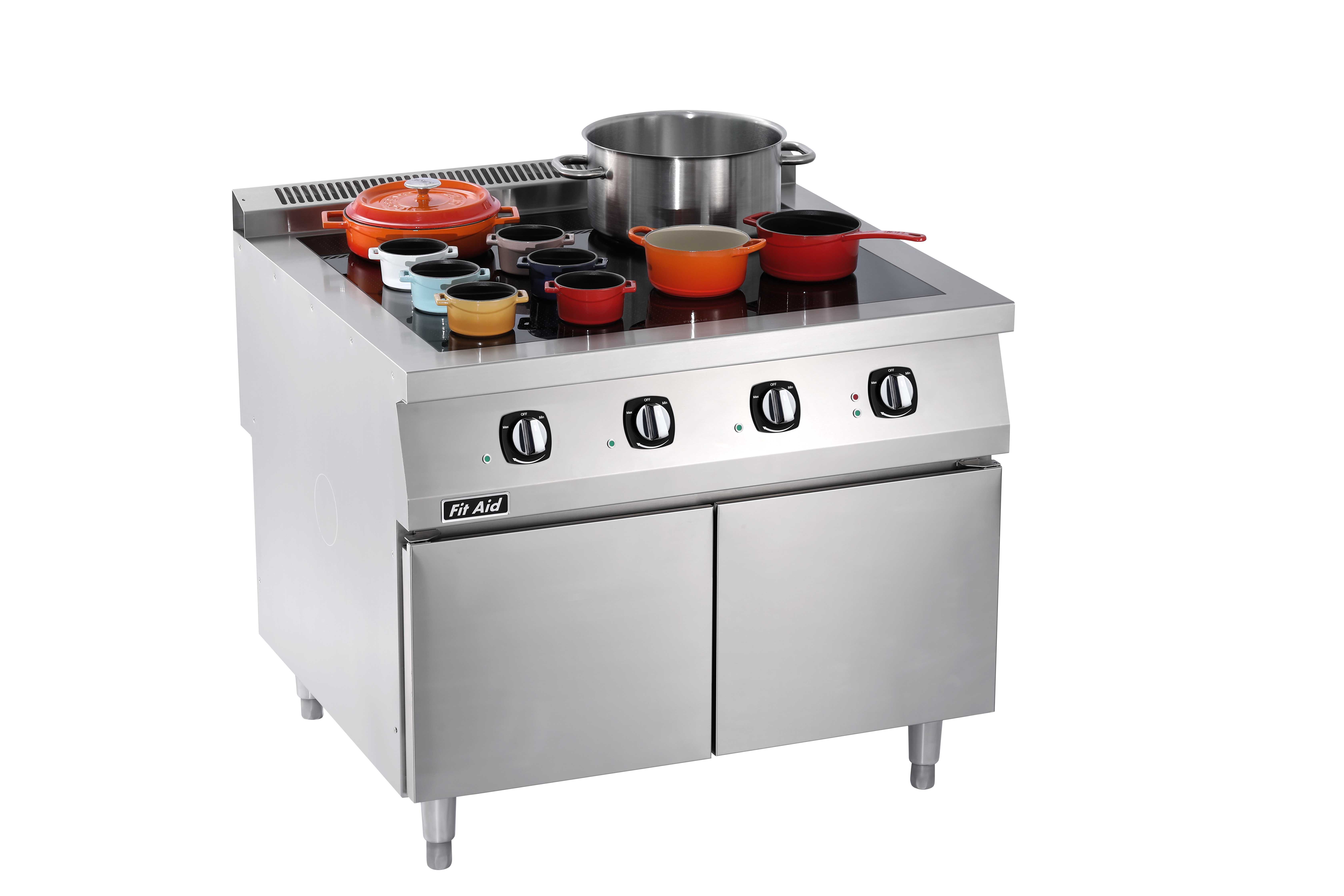

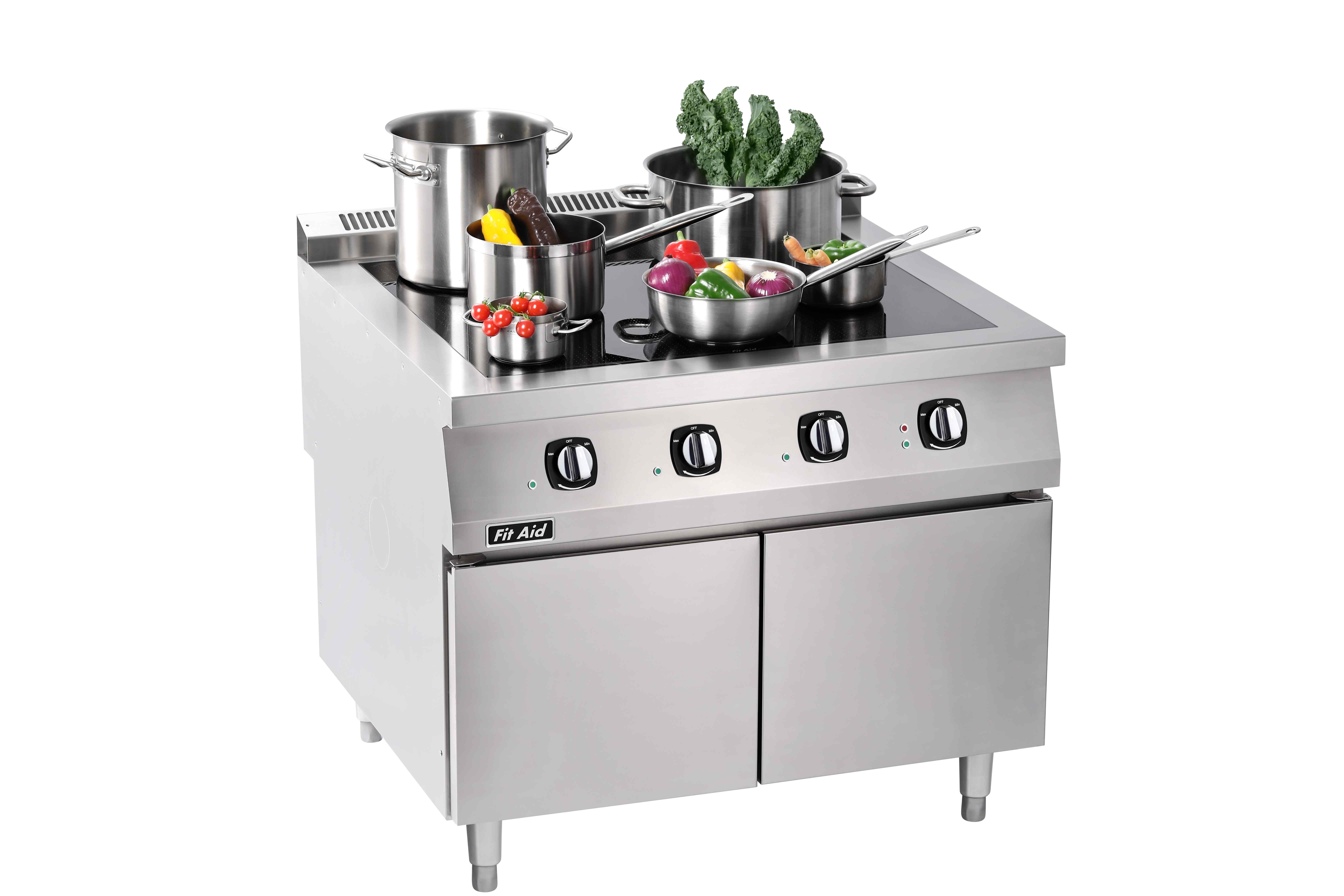

Fit Aid Heavy-Duty Commercial Free-Zone Induction Cooker & Built-In Cooktop

Product DescriptionZero Space Constraints & Intelligent Matrix Adaptation Break free from traditional coil limitations that require precise alignment and cause uneven cooking. The Fit Aid Free-Zone Induction Cooker is equipped with a high-de...
Get a Quote Explore Our Kitchen Projects
  • Introduction
  • Download Center
  • More Products
Introduction

Product Description

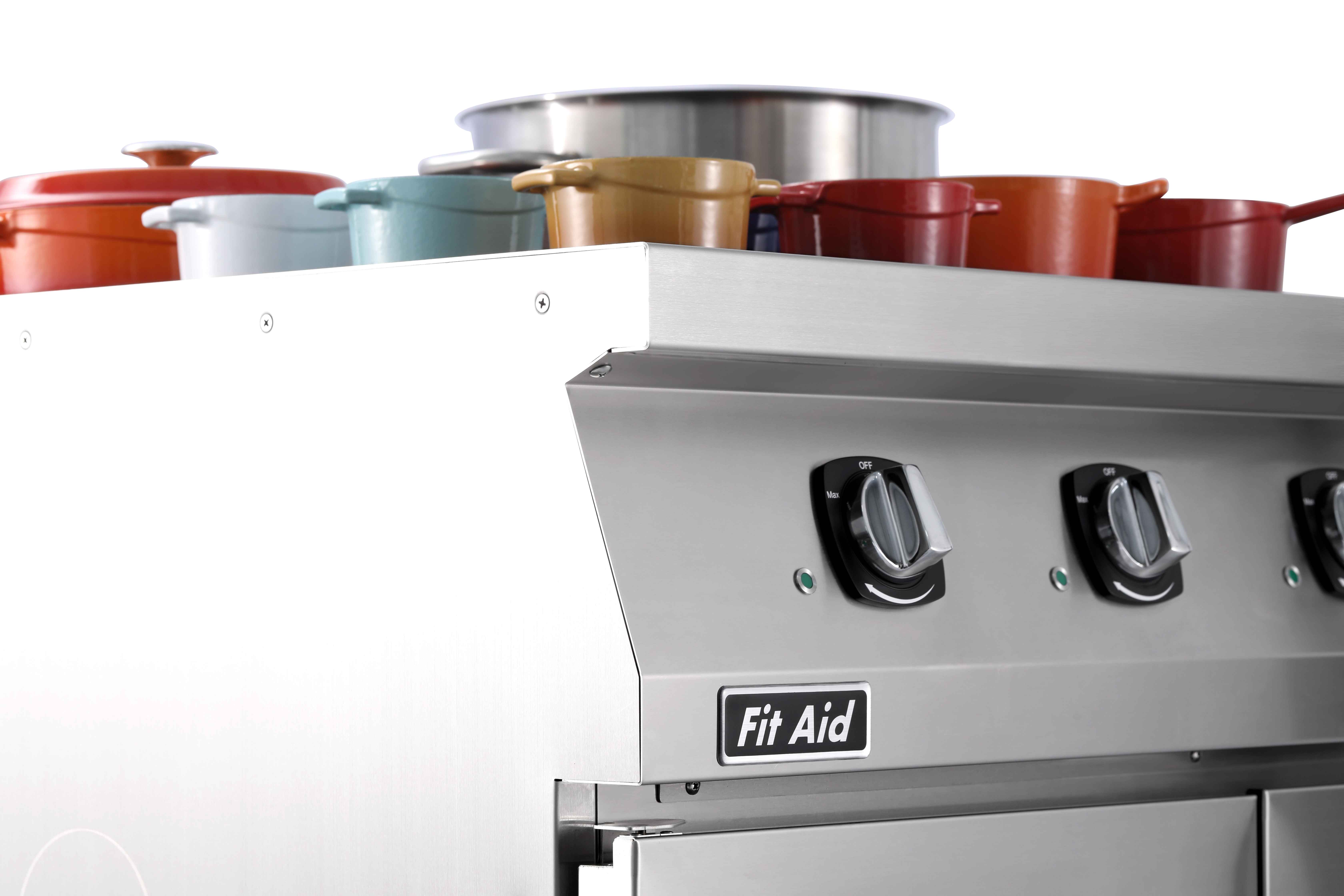

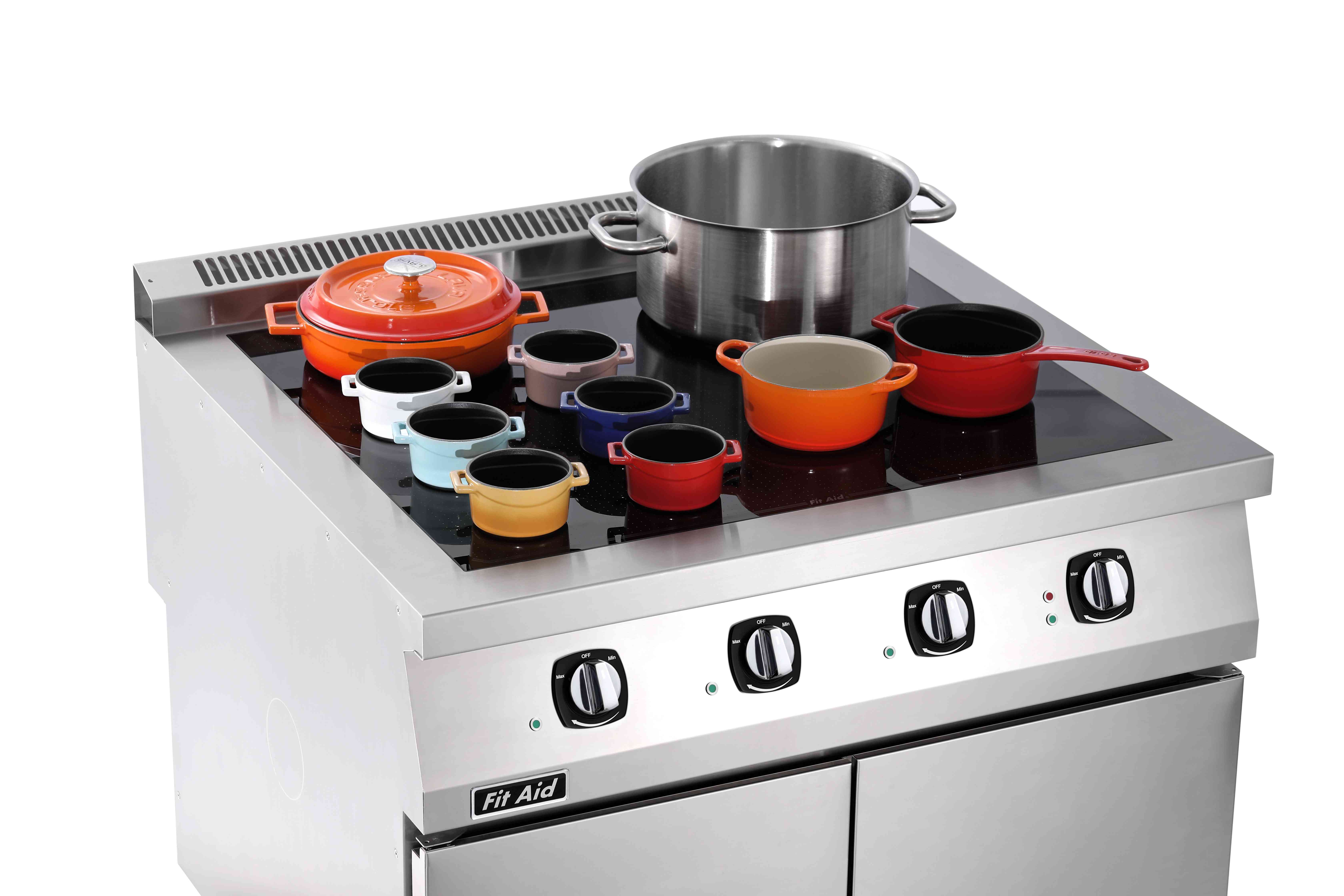

1. Commercial Free-Zone Induction Cooker with Seamless Bridging Technology.jpg 2. High-Density Matrix Induction Cooktop with Intelligent Pan Recognition.jpg

Zero Space Constraints & Intelligent Matrix Adaptation

Break free from traditional coil limitations that require precise alignment and cause uneven cooking. The Fit Aid Free-Zone Induction Cooker is equipped with a high-density matrix of small induction coils that intelligently recognize the exact shape and position of your cookware. Whether placed on the left, right, or center, only the direct contact area precisely heats up, maximizing space utilization and completely eliminating energy waste on smaller pots.

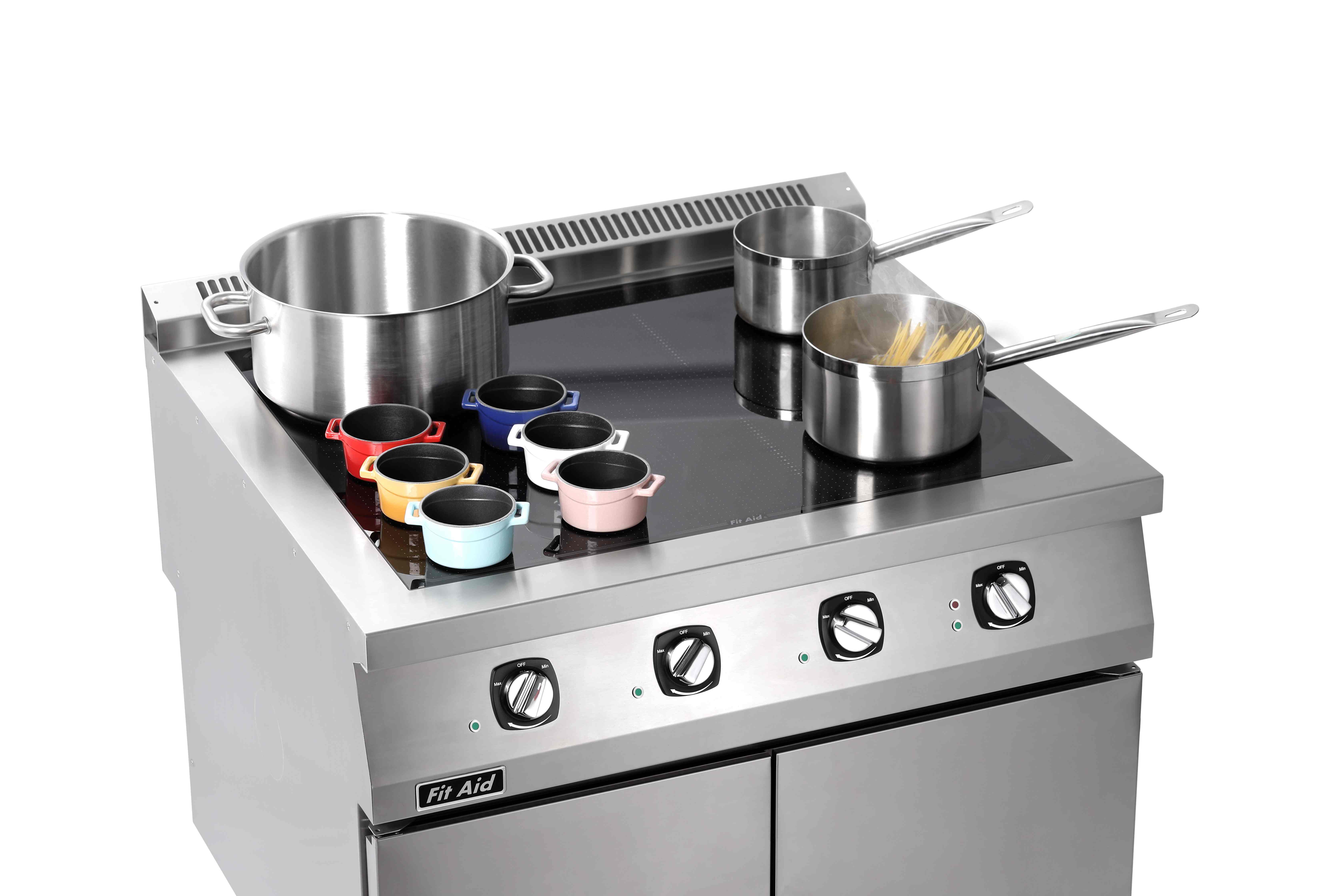

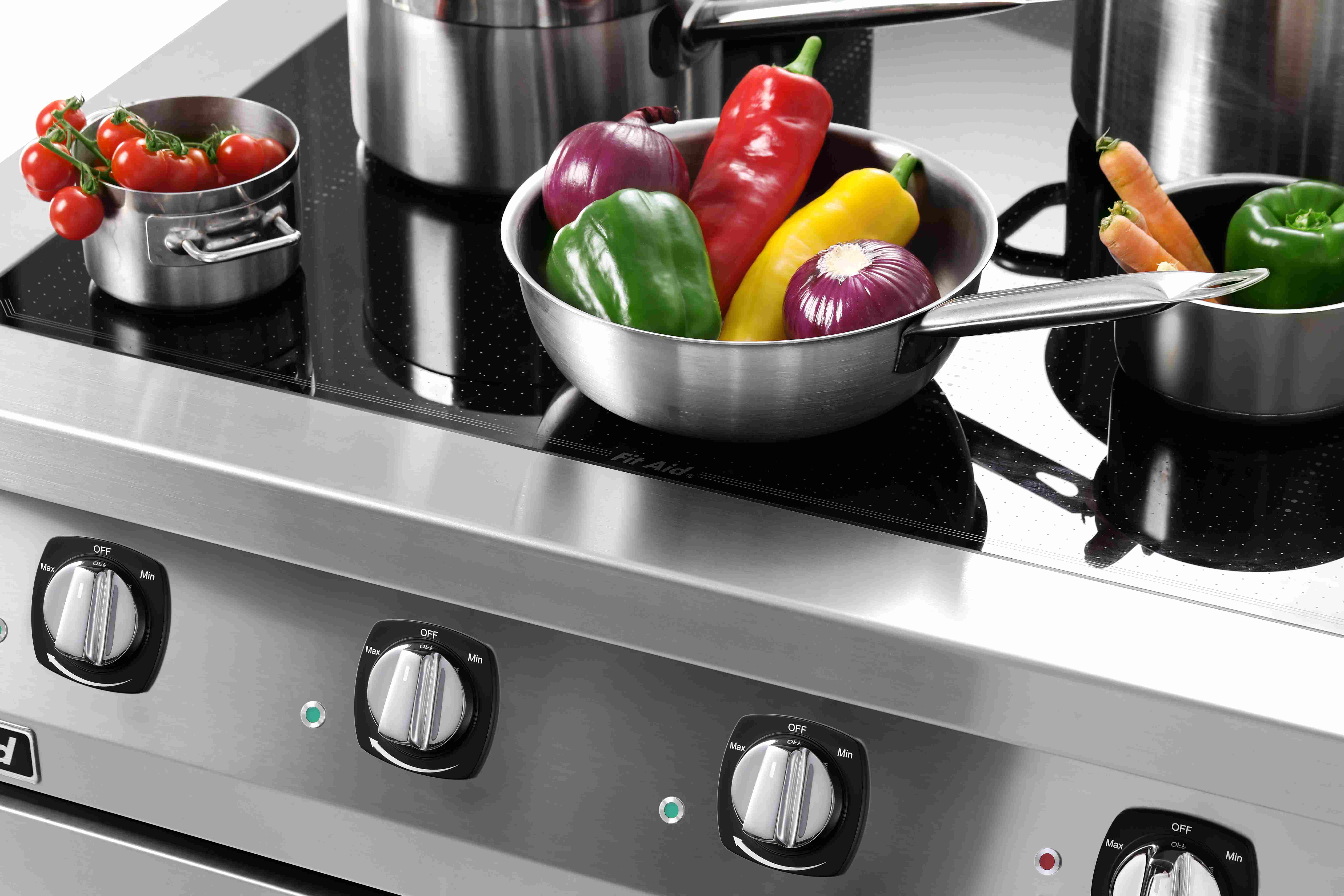

7C9A6334 拷贝.jpg 1. Heavy-Duty Free-Zone Induction Cooker with DSP Precision Control.jpg

Seamless Bridging Technology for Oversized Cookware

Effortlessly handle irregular and oversized cookware by breaking standard size limits and turning small burners into one large stove. The system's intelligent bridging function seamlessly merges multiple independent heating zones into a single extra-large temperature zone. This perfectly adapts to rectangular baking pans, large stew pots, or oval cast-iron pots, ensuring uniform heating and highly consistent culinary output without the cold spots typical of traditional stoves.

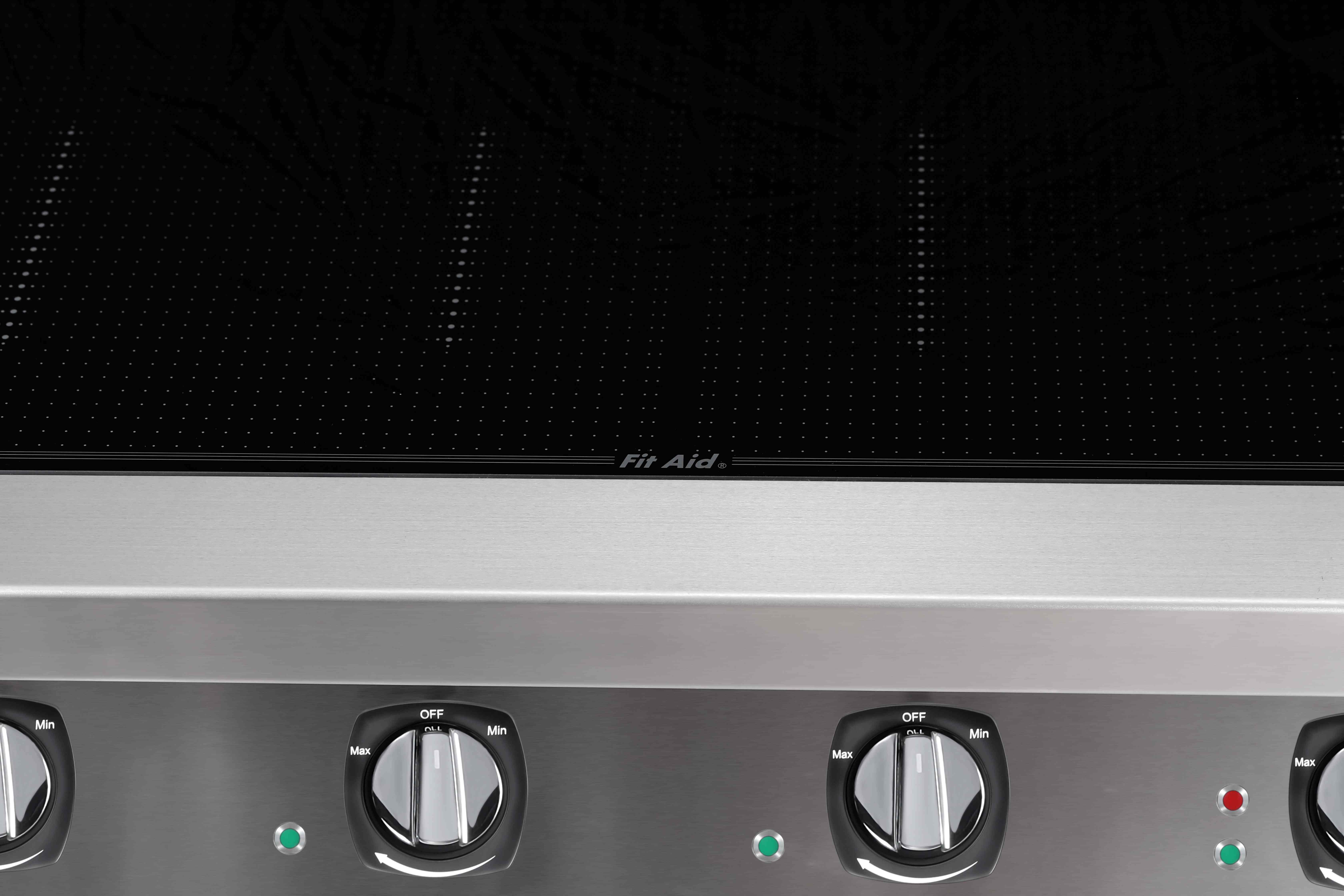

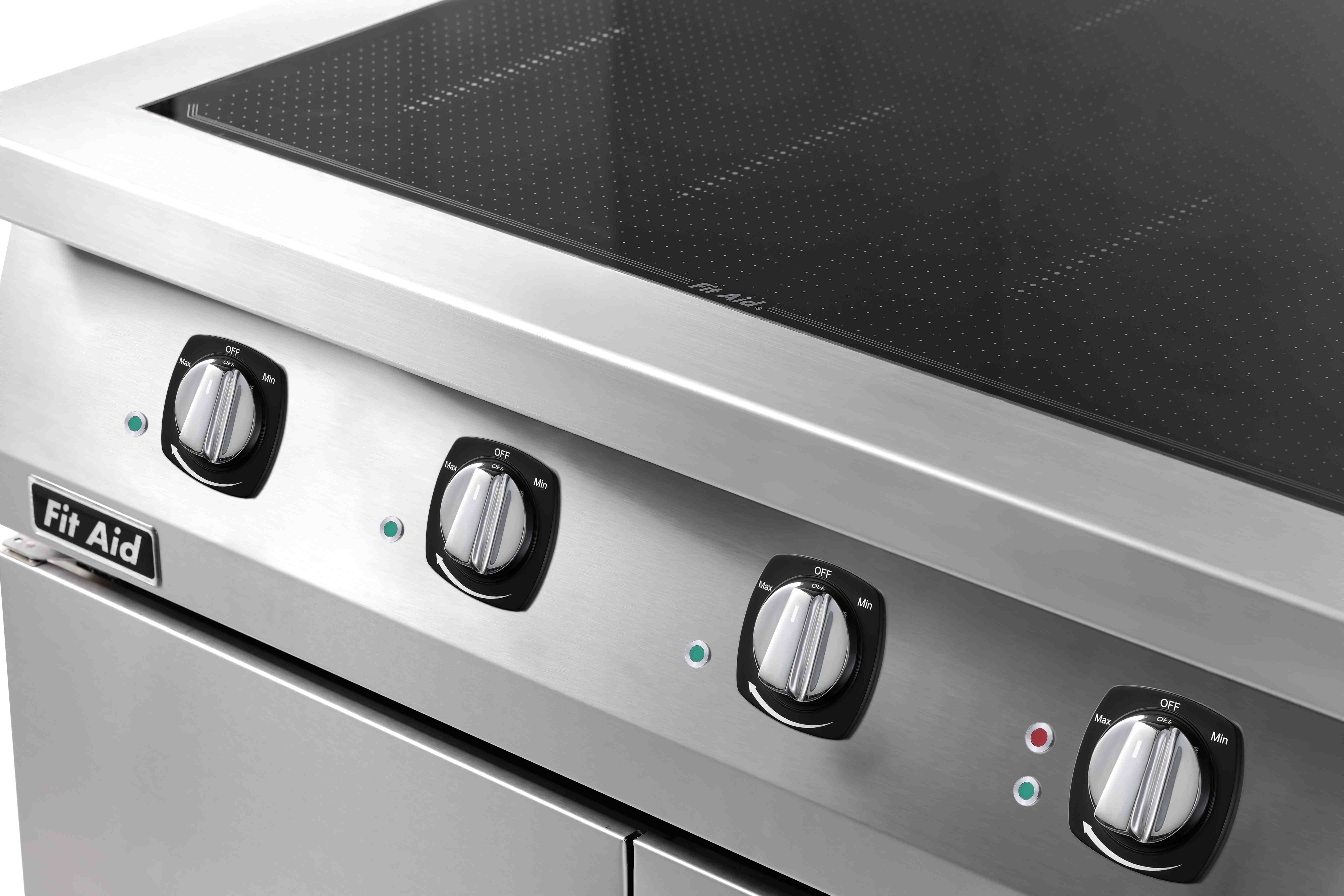

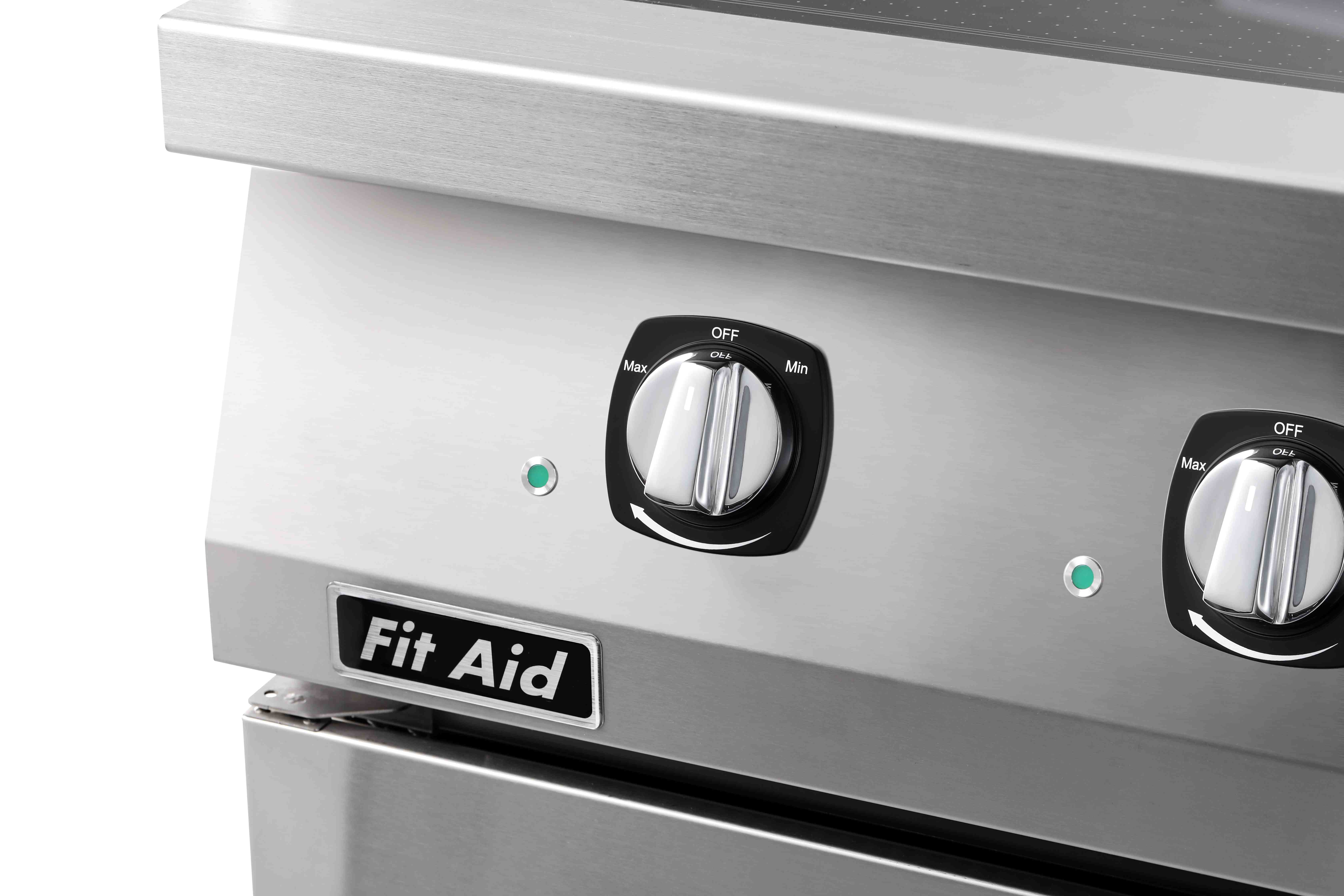

1. Dual-Engine Mixed Station Free-Zone Induction & Infrared Ceramic Cooktop.jpg 7C9A6364 拷贝.jpg 2. Heavy-Duty Commercial Free-Zone Induction Cooktop with 6mm Glass-Ceramic Panel.jpg

Commercial-Grade Precision & Stability

Master both high and low heat in high-pressure commercial environments. Built with a high-speed DSP system featuring exclusive intelligent frequency-fixing technology, the unit minimizes power fluctuations. It effortlessly maintains the stable, low temperatures required for delicate tasks like melting chocolate or slow cooking, while also being capable of instantly erupting with extreme high heat. The multi-zone layout makes heat distribution finer and more uniform, fundamentally preventing burnt bottoms.

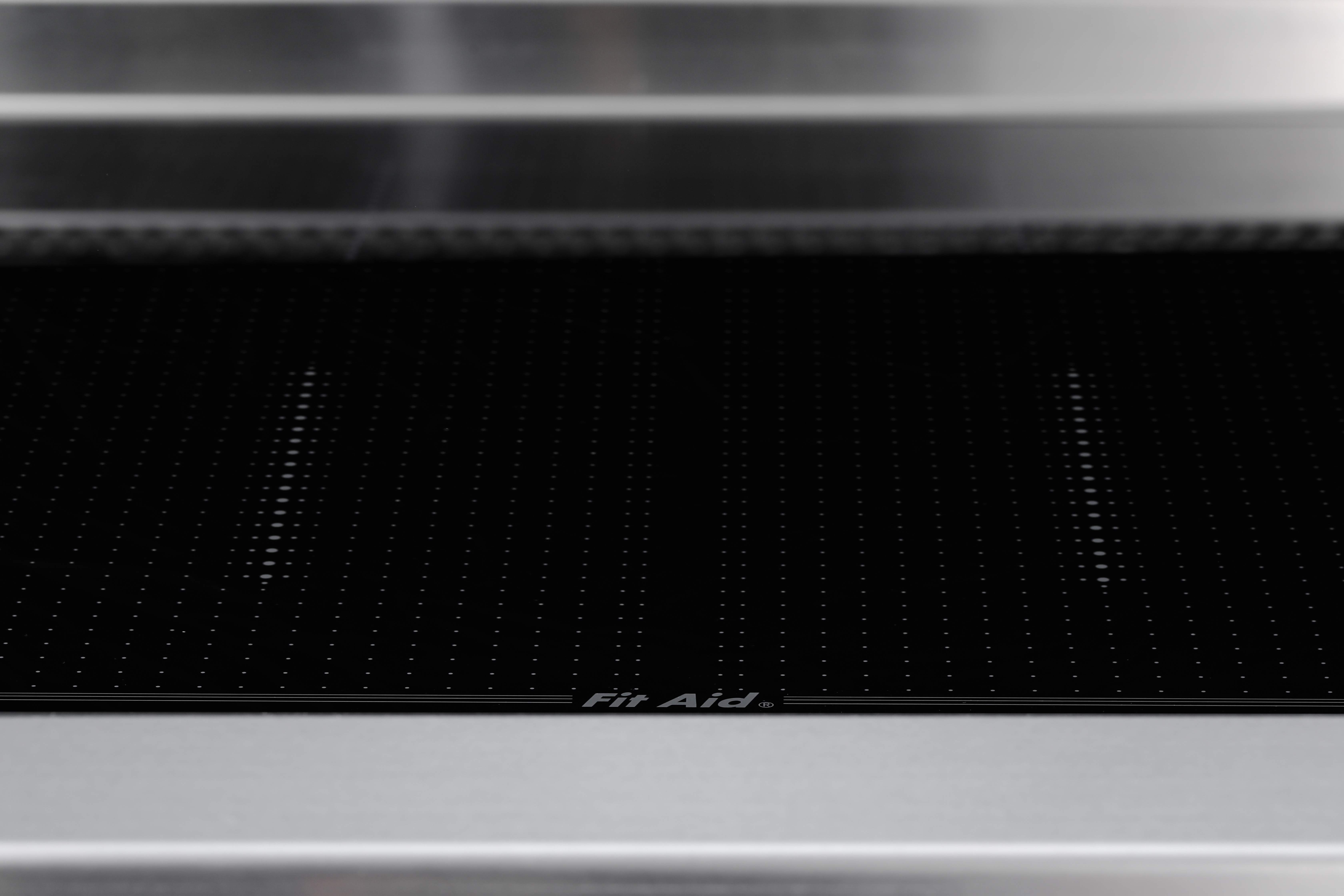

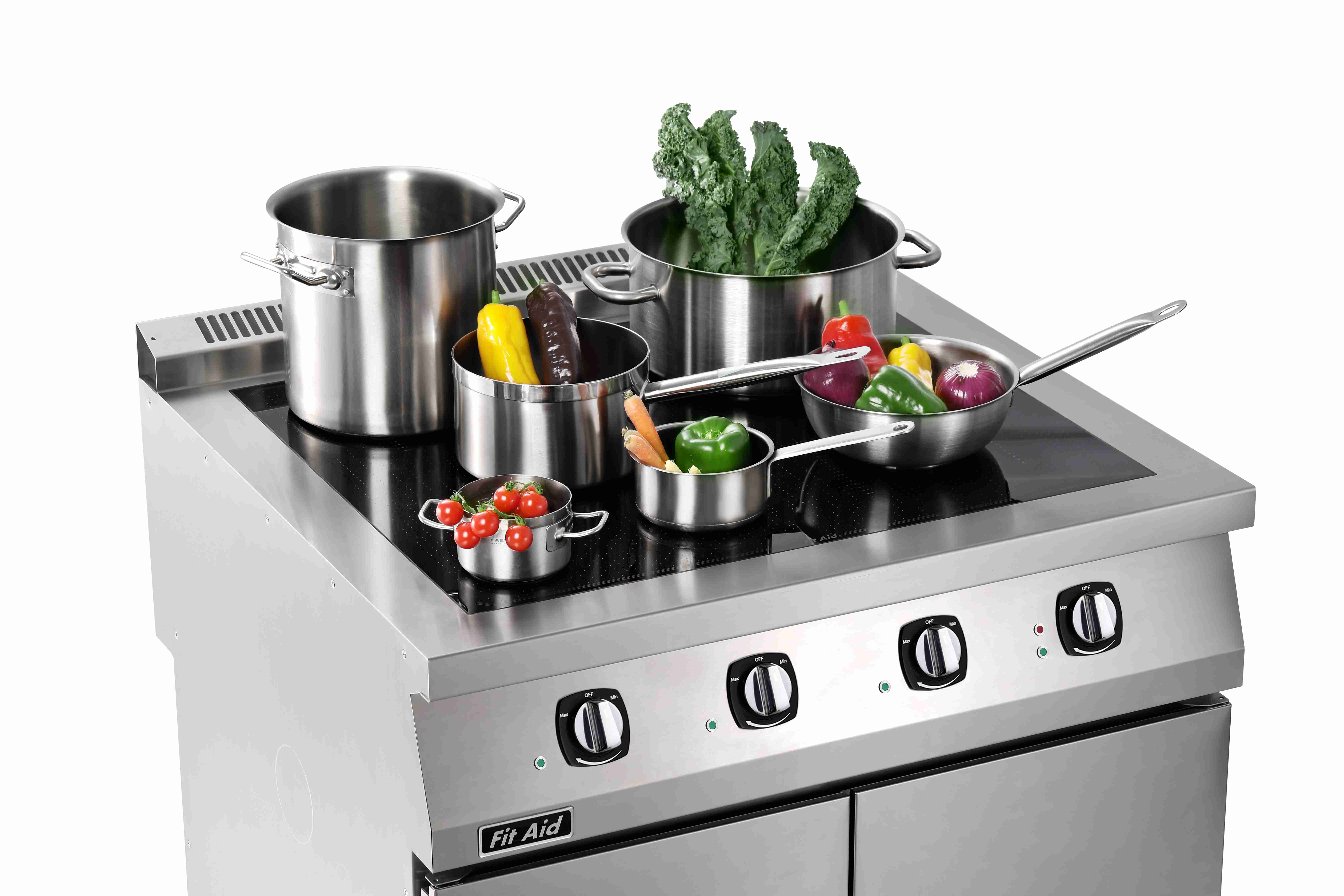

1. Modular Built-In Free-Zone Induction Cooktop with Independent Control System.jpg 7C9A6360.jpg

Ultimate Energy Efficiency & One-Second Cleaning

Reduce operational costs and increase efficiency with absolutely zero cleaning burden. The cooktop truly achieves "heat on demand," consuming electricity only in the specific area under the pot. Because the non-heating areas remain entirely at room temperature, spilled food and liquids never burn or scale onto the panel, making it completely safe and allowing you to wipe it clean in a second.

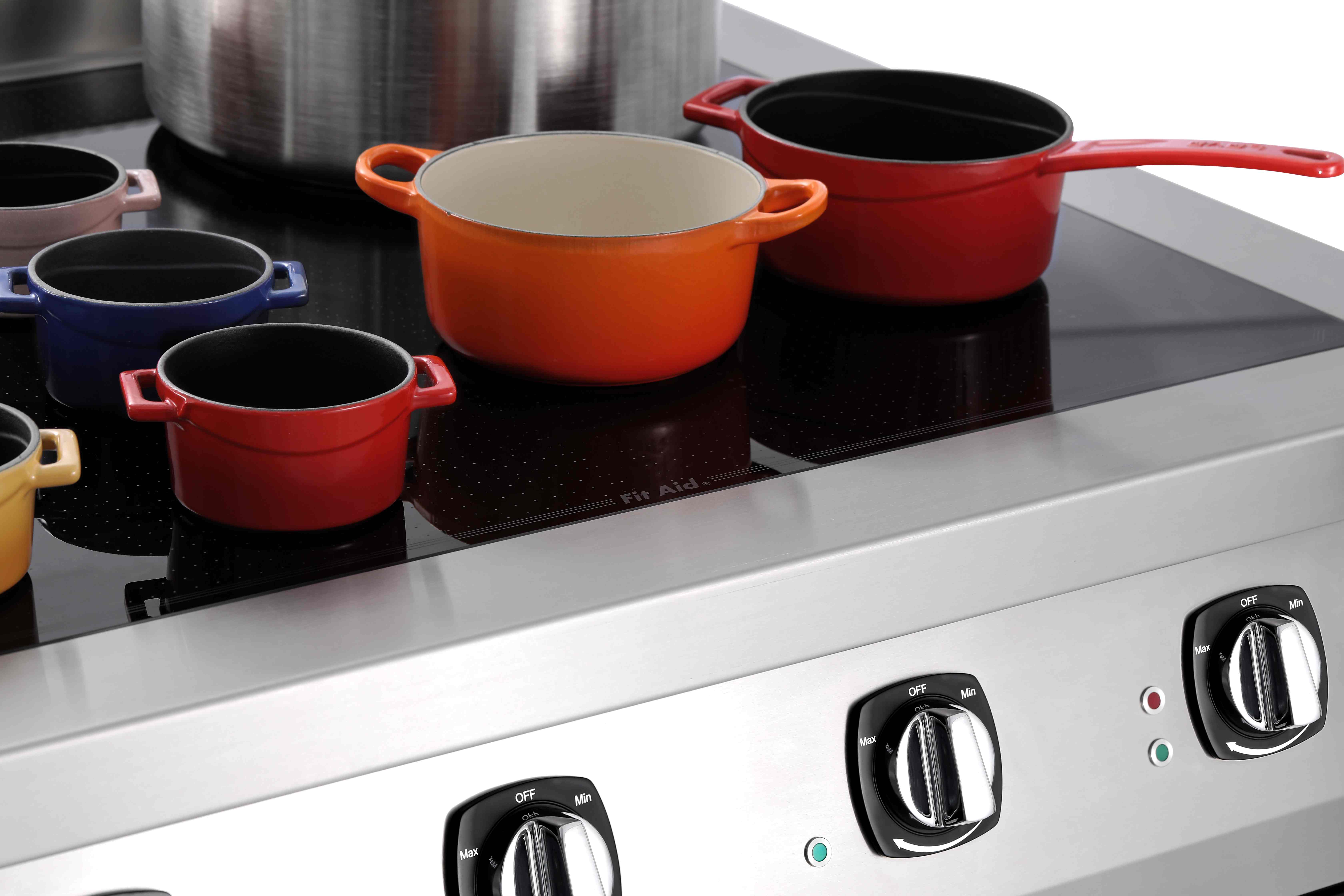

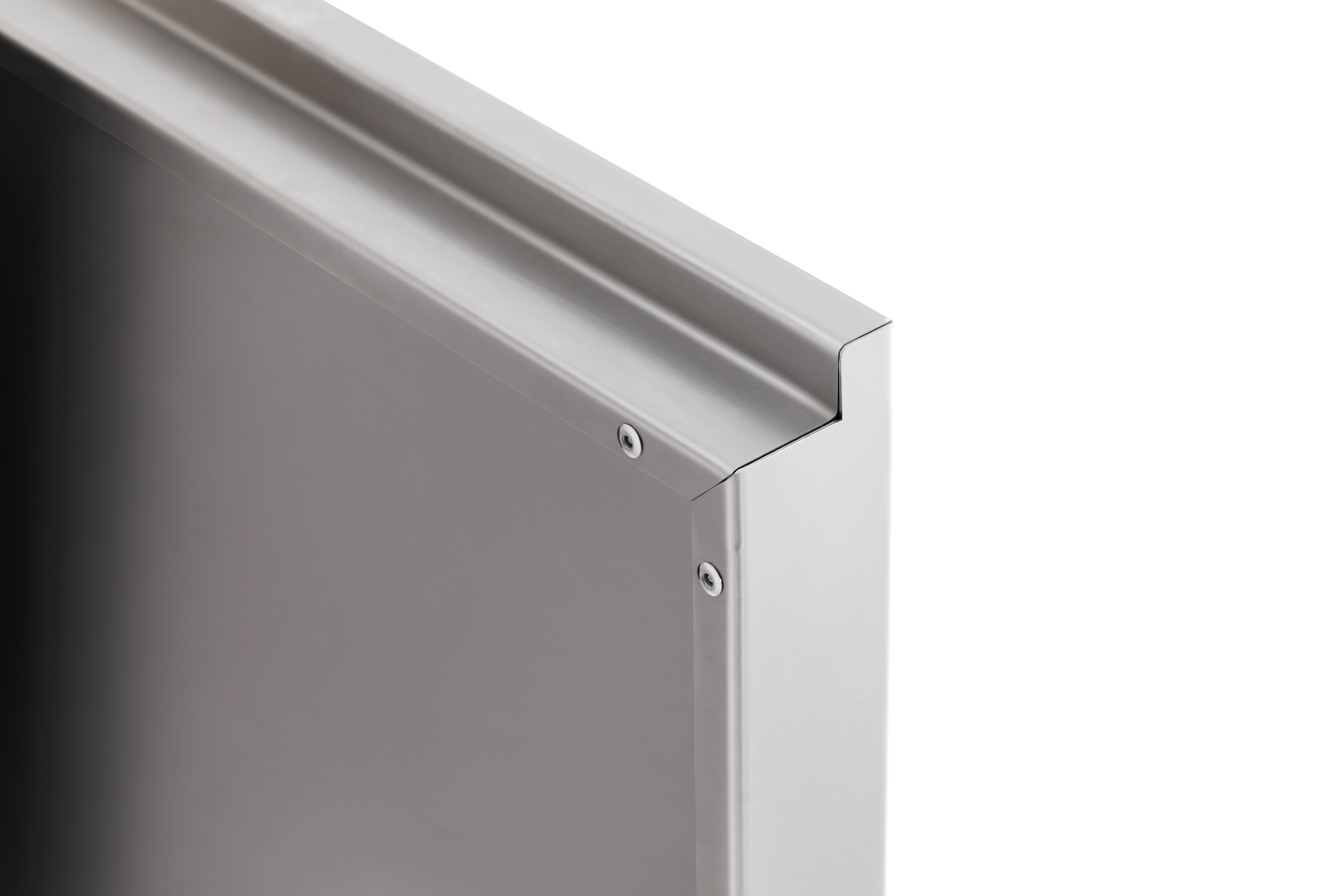

1. Commercial Free-Zone Induction Cooktop for Luxury Hotel Open Kitchens & Buffets.jpg 2. Intelligent Free-Zone Induction Station for High-Volume Banquet Catering.jpg

Flexible Customized Matrix: Induction & Infrared

Break cookware restrictions and build an exclusive, all-around cooking station. The system supports the seamless mixing of "multi-zone induction" and "infrared (ceramic)" modules on the same counter. The induction zone handles precise and rapid output, while the infrared zone accommodates specialty tableware like clay pots, glass, or ceramics. Combine these modules according to your actual service needs to create a personalized kitchen with the most efficient space utilization.

Model Specifications

Type Model No. Dimensions (W*D*H) Voltage / Frequency Power
Cabinet Base FIT1/MZ28/SPD 1000*900*850mm 380V/50Hz 28kW
Built-In Module FIT1/10LMZ/B 400*800*100mm 380V/50Hz 10kW
Built-In Module FIT1/10HMZ/B 800*400*100mm 380V/50Hz 10kW
Built-In Module FIT1/14LMZ/B 325*650*100mm 380V/50Hz 14kW
Built-In Module FIT1/14HMZ/B 650*325*100mm 380V/50Hz 14kW

Engineering & Construction Features

Category Specification Item Technical Details
Build & Material Worktop Constructed from 304 stainless steel with a 2.0mm thick one-piece deep-drawn worktop.
Build & Material Glass Panel Extra-large integral 6mm thick glass-ceramic panel.
Core Technology Induction Matrix Equipped with a high-density matrix of small induction coils that intelligently recognize the shape and position of cookware.
Core Technology Seamless Bridging Intelligent bridging function seamlessly merges multiple independent heating zones into one extra-large temperature zone for oversized cookware.
Core Technology Drive System Powered by industry-leading imported parts including IXYS and Infineon, featuring a built-in high-speed DSP system with exclusive intelligent frequency-fixing technology.
Safety System Electrical Protection Comprehensive multi-layer protection against overcurrent and extreme temperatures.
Hygiene & Maint. Easy Cleaning Non-heating areas remain at room temperature, ensuring spilled liquids never burn and scale.

Engineered for High-End Culinary Spaces

The 750/900 Series is the system of choice for uncompromising culinary environments.
✓ Luxury Hotel Back-of-House
✓ Fine Dining & Michelin-Star Kitchens
✓ High-Volume Quick Service Lounges
✓ Open Kitchen Concept Designs

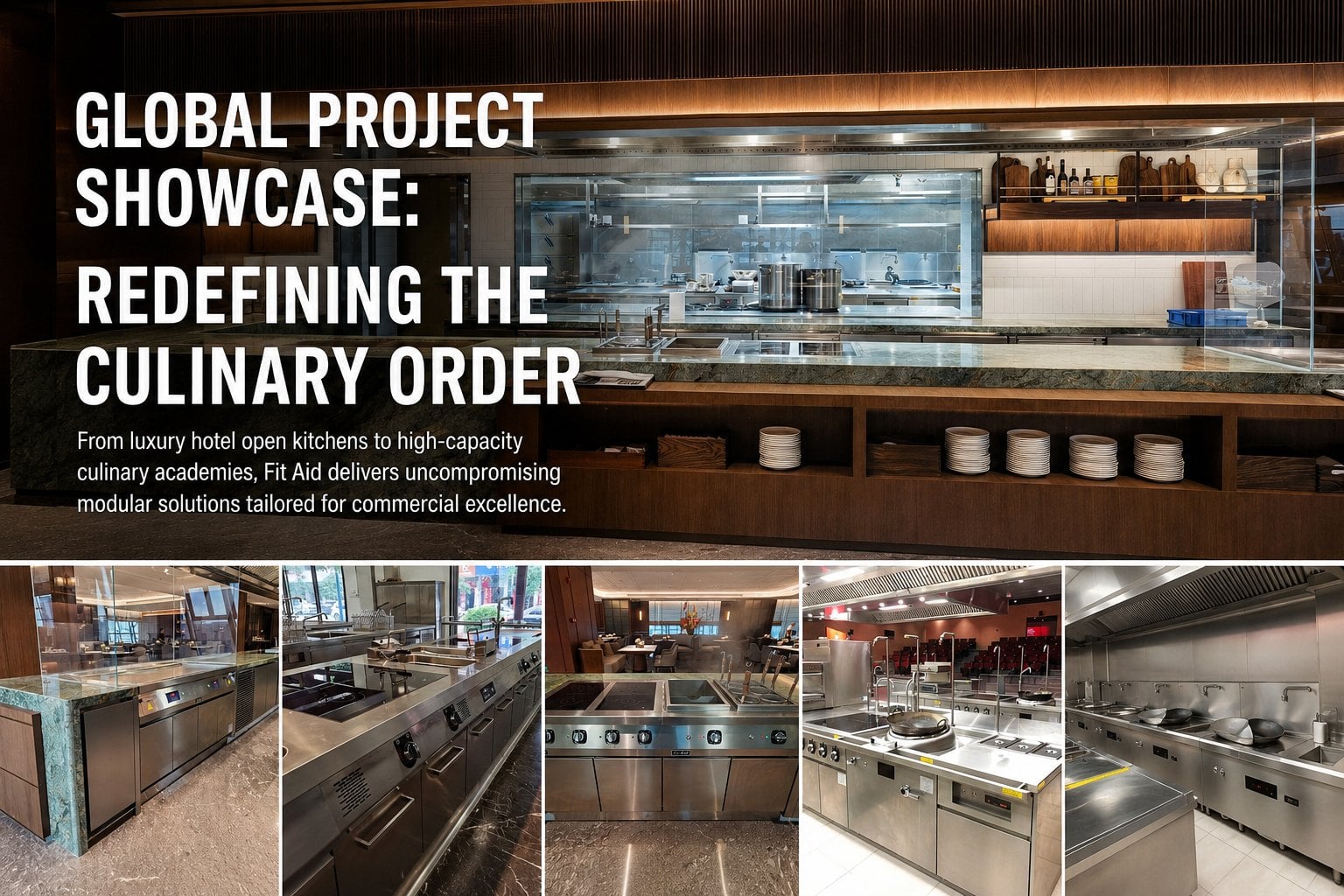

1. GLOBAL PROJECT SHOWCASE.jpg

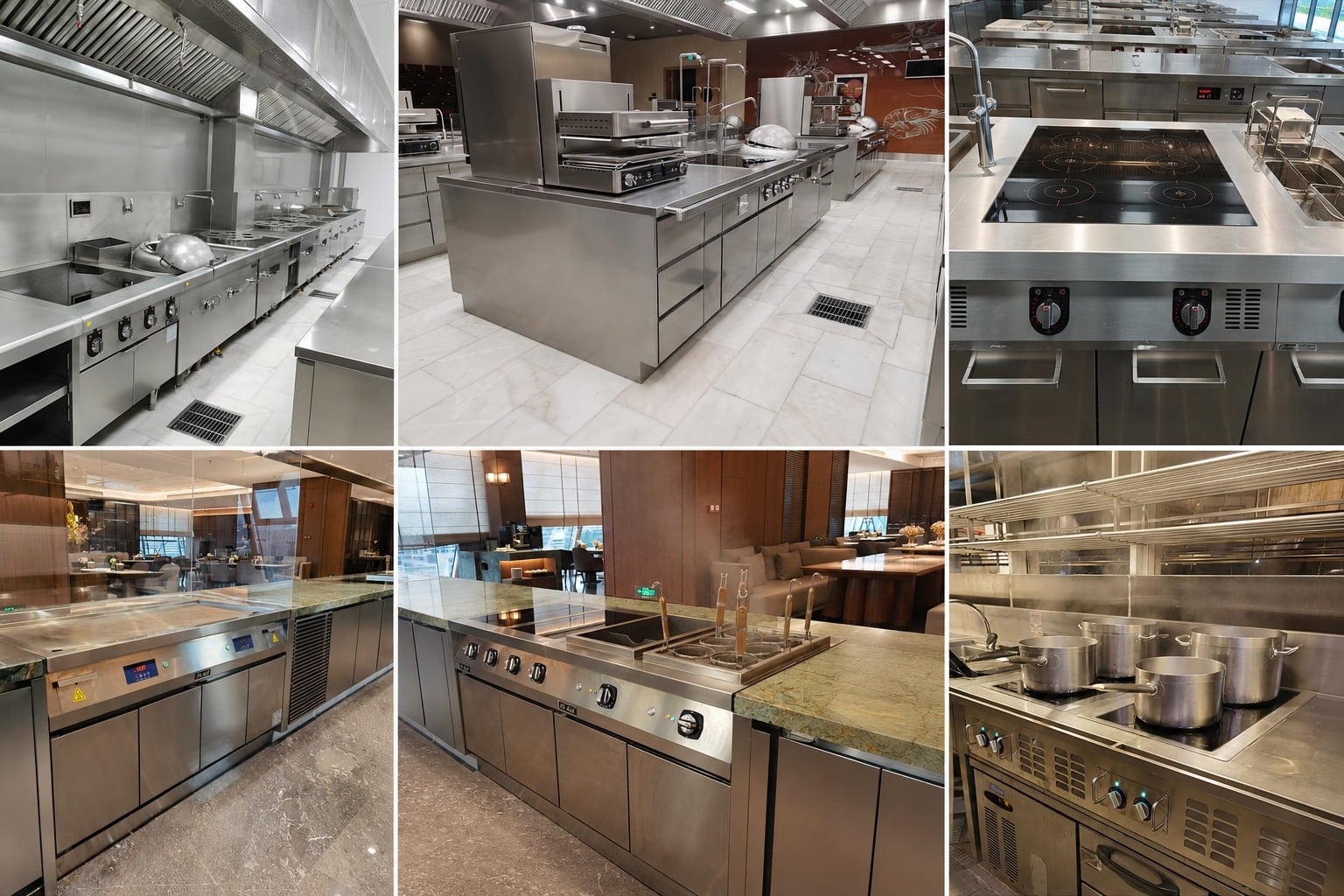

2. Trusted by Global Hospitality Leaders.jpg

FAQ

Q1: Are you a direct factory or a trading company?
A: We are a comprehensive commercial kitchen engineering contractor. We operate our own manufacturing facilities (specializing in custom stainless steel and heating equipment) AND serve as an authorized distributor for 40+ top international brands. This allows us to provide unbiased, optimized, and tailored equipment combinations for your project.
Q2: What is exactly included in your "A-Z Turnkey Solution"?
A: We handle everything from the ground up. You provide the floor plan, and we deliver a fully operational kitchen. Our services include:
l 2D/3D kitchen layout design & MEP consulting
l Custom manufacturing & equipment procurement
l Global logistics & online/onsite installation guidance
Q3: How do you guarantee the quality of international projects?
A: Quality is our baseline. Our self-manufactured equipment utilizes world-class components (e.g., German thermostats, imported IGBT modules). Furthermore, every single piece of equipment—whether built by us or sourced—undergoes a rigorous unified pre-shipment inspection by our engineering QA team before container loading.
Q4: What is the typical lead time for a complete kitchen project?
A: For a complete A-Z project, the production and consolidation timeline typically ranges from 4 to 6 weeks after the final layout and equipment list are approved. We provide strict project timelines to ensure your facility opens on schedule.
Q5: How do you handle warranty and after-sales service overseas?
A: We provide a 1-year warranty on core components. Understanding the distance, we proactively include a package of essential vulnerable spare parts with your initial shipment. Additionally, our technical support team offers 24/7 online troubleshooting and video guidance to ensure zero downtime.

Download Center

Resources & MEP Specifications

For consultants, contractors, and kitchen designers.

[Download 750/900 Series Spec Sheet (PDF)]

Fit Aid Heavy-Duty Commercial Free-Zone Induction Cooker & Built-In Cooktop.pdf

[Request CAD Drawings / 3D BIM Models]

[Download Installation & Maintenance Manual]
